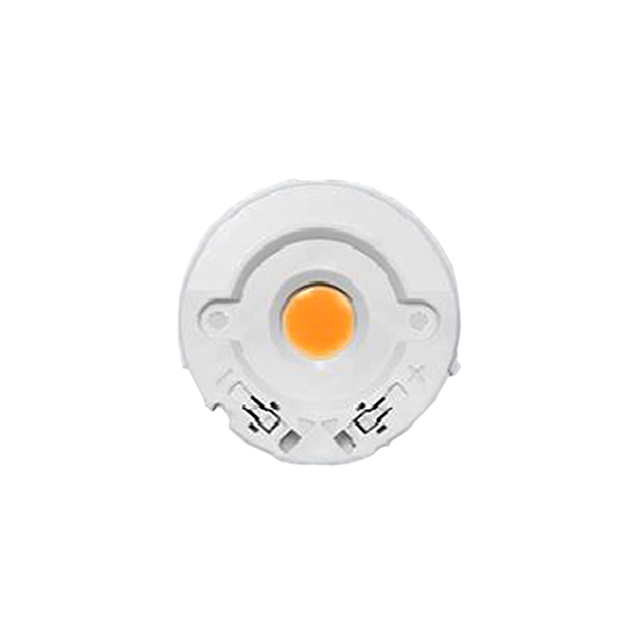

SI-N8T1312B0WW

Obsolete

Samsung Semiconductor, Inc.

LED COB SLE-013 WHT RND 4000K

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED COB SLE-013 WHT RND 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	SI-N8T1312B0WW

CCT (K)	4000 K
Color	Neutral, White
Configuration	Round
CRI (Color Rendering Index)	80
Current - Max [Max]	350 mA
Current - Test	250 mA
Features	With Connector
Height [z]	6.1 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	13.5 mm
Lumens/Watt @ Current - Test	141 lm/W
Luminous Flux @ Current/Temperature	1180 lm
Size / Dimension [diameter]	50 mm
Temperature - Test	75 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.5 V

Part	Voltage - Forward (Vf) (Typ)	Height [z]	Lumens/Watt @ Current - Test	Viewing Angle	Configuration	Current - Test	Temperature - Test	CCT (K)	Features	Luminous Flux @ Current/Temperature	Color	Lens Type	CRI (Color Rendering Index)	Type	Size / Dimension [diameter]	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Size / Dimension [x]	Size / Dimension [y]
Samsung Semiconductor, Inc. SI-N8T0814B0WW	24 V	5.75 mm	131 lm/W	115 °	Round	350 mA	55 °C	4000 K	With Connector	1100 lm	Neutral White	Flat	80	LED Module	90 mm
Samsung Semiconductor, Inc. SI-N8T1312B0WW	33.5 V	6.1 mm	141 lm/W	115 °	Round	250 mA	75 °C	4000 K	With Connector	1180 lm	Neutral White	Flat	80	Chip On Board (COB)	50 mm	350 mA	13.5 mm
Samsung Semiconductor, Inc. SI-N8T1113B1US	120 VAC	12.5 mm	107 lm/W	115 °	Square			4000 K		1210 lm	Neutral White	Flat	80	LED Module				55 mm	55 mm
Samsung Semiconductor, Inc. SI-N8T0916E0WW	23.5 V	2.2 mm	107 lm/W	150 °	Square	400 mA	65 °C	4000 K		1010 lm	Neutral White		80	LED Module		700 mA		19 mm	19 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) SLE-013 White, Neutral Round
