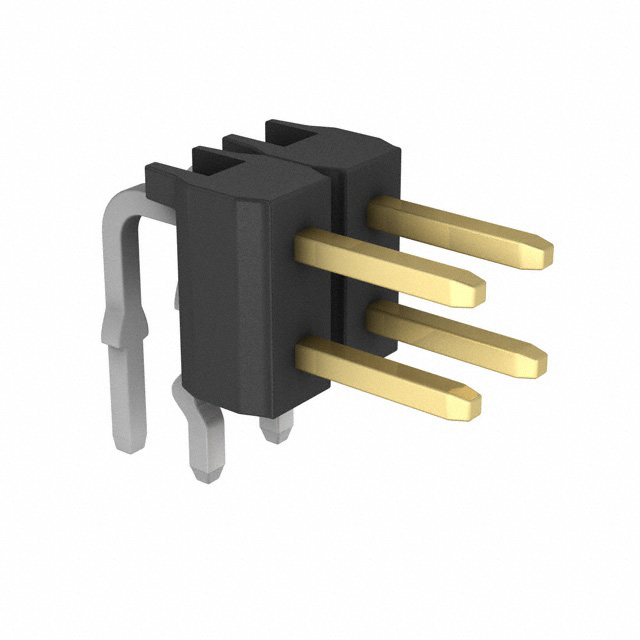

A3B-4PA-2DS(71)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER R/A 4POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A3B-4PA-2DS(71)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER R/A 4POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3B-4PA-2DS(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Kinked Pin, Solder

A3B-4PA Series

Part	Termination	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height [custom]	Insulation Height [custom]	Connector Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Mating	Number of Rows	Contact Shape	Mounting Type	Number of Positions Loaded	Contact Material	Insulation Material	Insulation Color	Contact Finish Thickness - Mating	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Style	Number of Positions	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height
Hirose Electric USA, Inc. A3B-4PA-2DS(71)	Kinked Pin Solder	0.138 in	3.5 mm	Tin	Male Pin	0.079 in	2 mm	0.079 in	2 mm	0.157 in	4 mm	Header	0.102 in	2.6 mm	UL94 V-0	Gold	2	Square	Through Hole Right Angle	All	Brass	Nylon Polyamide (PA)	Black	Flash	Unshrouded	85 °C	-55 °C	Board to Board Cable	4	Push-Pull
Hirose Electric USA, Inc. A3B-4PA-2DS(51)	Kinked Pin Solder	0.138 in	3.5 mm		Male Pin	0.079 in	2 mm	0.079 in	2 mm	0.157 in	4 mm	Header	0.102 in	2.6 mm	UL94 V-0	Gold	2	Square	Through Hole Right Angle	All	Brass	Nylon Polyamide (PA)	Black		Unshrouded	85 °C	-55 °C	Board to Board Cable	4	Push-Pull
Hirose Electric USA, Inc. A3B-4PA-2DSA(71)	Solder	0.138 in	3.5 mm	Tin	Male Pin	0.079 in	2 mm	0.079 in	2 mm			Header	0.102 in	2.6 mm	UL94 V-0	Gold	2	Square	Through Hole	All	Brass	Nylon Polyamide (PA)	Black	Flash	Unshrouded	85 °C	-55 °C	Board to Board Cable	4	Push-Pull	2 çm	78.7 çin	6 mm 8.8 mm	7.9 mm	0.311 in	1.8 mm	0.071 "
Hirose Electric USA, Inc. A3B-4PA-2DSA(51)	Solder	0.138 in	3.5 mm		Male Pin	0.079 in	2 mm	0.079 in	2 mm			Header	0.102 in	2.6 mm	UL94 V-0	Gold	2	Square	Through Hole	All	Brass	Nylon Polyamide (PA)	Black		Unshrouded	85 °C	-55 °C	Board to Board Cable	4	Push-Pull				7.9 mm	0.311 in	1.8 mm	0.071 "
