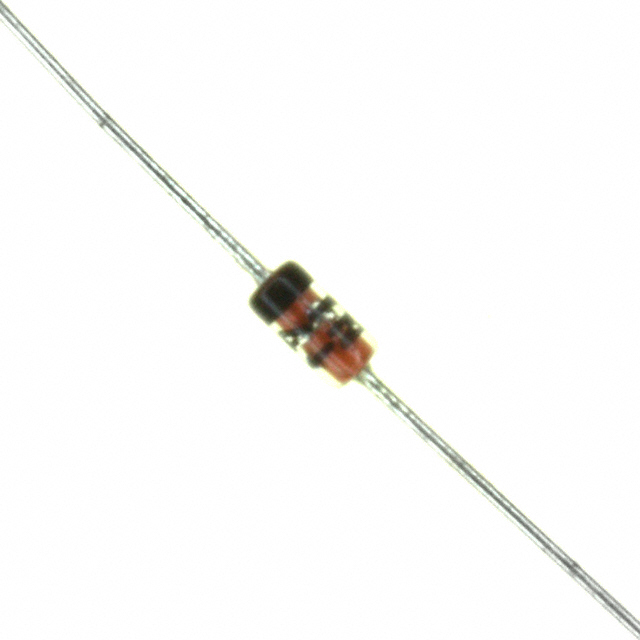

1N4148T-73

Obsolete

Rohm Semiconductor

DIODE GEN PURP 75V 150MA GSD

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

DIODE GEN PURP 75V 150MA GSD

Technical Specifications

Parameters and characteristics for this part

Specification	1N4148T-73

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Axial, DO-35, DO-204AH
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	GSD
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Supplier Device Package	Package / Case	Mounting Type	Reverse Recovery Time (trr)	Technology	Capacitance @ Vr, F
Rohm Semiconductor 1N4148T-73	75 V	1 V	Any Speed	200 mA	200 C	-65 C	150 mA	5 µA	GSD	Axial DO-204AH DO-35	Through Hole	4 ns	Standard	4 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 75 V 150mA Through Hole GSD
