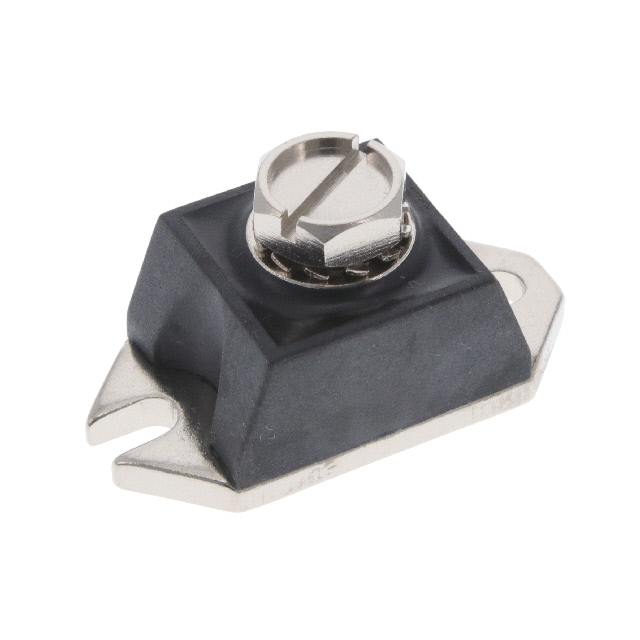

182NQ030R-1

Active

SMC Diode Solutions

DIODE SCHOTTKY 30V 180A PRM1-1

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 30V 180A PRM1-1

Technical Specifications

Parameters and characteristics for this part

Specification	182NQ030R-1

Capacitance @ Vr, F	7000 pF
Current - Average Rectified (Io)	180 A
Current - Reverse Leakage @ Vr	15 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	HALF-PAK
Speed	200 mA, 500 ns
Supplier Device Package	PRM1-1 (Half Pak Module)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If [Max]	510 mV

Part	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Package / Case
SMC Diode Solutions 182NQ030R-1	PRM1-1 (Half Pak Module)	510 mV	Schottky	Chassis Mount	30 V	15 mA	7000 pF	180 A	150 °C	-55 °C	200 mA 500 ns	HALF-PAK
SMC Diode Solutions 182NQ030-1	PRM1-1 (Half Pak Module)	510 mV	Schottky	Chassis Mount	30 V	15 mA	7700 pF	180 A	150 °C	-55 °C	200 mA 500 ns	HALF-PAK

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 180A Chassis Mount PRM1-1 (Half Pak Module)
