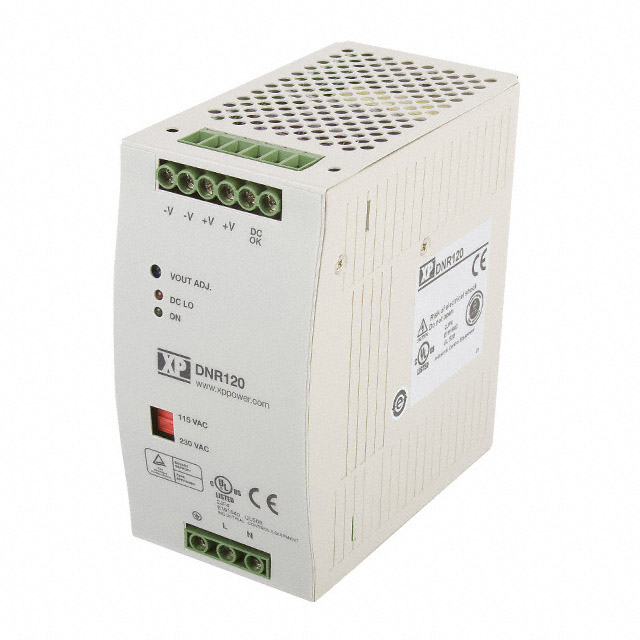

DNR120AS48-I

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 48V 120W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 48V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	DNR120AS48-I

AC Voltage - Input [Max]	264 VAC, 132 VAC
AC Voltage - Input [Min]	90 VAC, 180 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE
Current - Output (Max) [Max]	2.5 A
Efficiency	87 %
Features	Adjustable Output, Universal Input
Input Type	AC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-35 °C
Size / Dimension [x]	116 mm
Size / Dimension [x]	4.57 "
Size / Dimension [y]	63.5 mm
Size / Dimension [y]	2.5 in
Size / Dimension [z]	125 mm
Size / Dimension [z]	4.92 in
Standard Number	62368-1
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Features	Efficiency	Voltage - Output 1	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Input Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Approval Agency	Current - Output (Max) [Max]	Applications
XP POWER DNR120AS48-I	Adjustable Output Universal Input	87 %	48 V	132 VAC 264 VAC	90 VAC 180 VAC	AC	116 mm	125 mm	63.5 mm	4.92 in	4.57 "	2.5 in	1	3000 V	70 °C	-35 °C	62368-1	CE	2.5 A	Hazardous Locations Industrial ITE (Commercial)
XP POWER DNR120AS24-I	Adjustable Output Universal Input	86 %	24 V	132 VAC 264 VAC	90 VAC 180 VAC	AC	116 mm	125 mm	63.5 mm	4.92 in	4.57 "	2.5 in	1	3000 V	70 °C	-35 °C	62368-1	CE	5 A	Hazardous Locations Industrial ITE (Commercial)
XP POWER DNR120TS12	Adjustable Output Load Sharing	87 %	12 V	575 VAC	340 VAC	AC	111.3 mm	123.6 mm	74.3 mm	4.87 in	4.39 in	2.93 in	1	3000 V			62368-1		10 A	Hazardous Locations Industrial ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 48V 120W
