DLO1-24-0007

Obsolete

SCHURTER Inc.

FIXED IND 600MA 1.55 OHM TH

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

FIXED IND 600MA 1.55 OHM TH

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Current Rating (Amps)	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [y]	DC Resistance (DCR)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
SCHURTER Inc. DLO1-24-0004	Through Hole	1.8 A	0.787 in	10 mm	20 mm	0.394 in	178 mOhm	Radial Vertical (Open)	125 °C	-40 °C
SCHURTER Inc. DLO1-24-0007	Through Hole	600 mA	0.787 in	10 mm	20 mm	0.394 in	1.55 Ohm	Radial Vertical (Open)	125 °C	-40 °C
SCHURTER Inc. DLO1-24-0003	Through Hole	3 A	0.787 in	10 mm	20 mm	0.394 in	70 mOhm	Radial Vertical (Open)	125 °C	-40 °C
SCHURTER Inc. DLO1-24-0006	Through Hole	1 A	0.787 in	10 mm	20 mm	0.394 in	600 mOhm	Radial Vertical (Open)	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

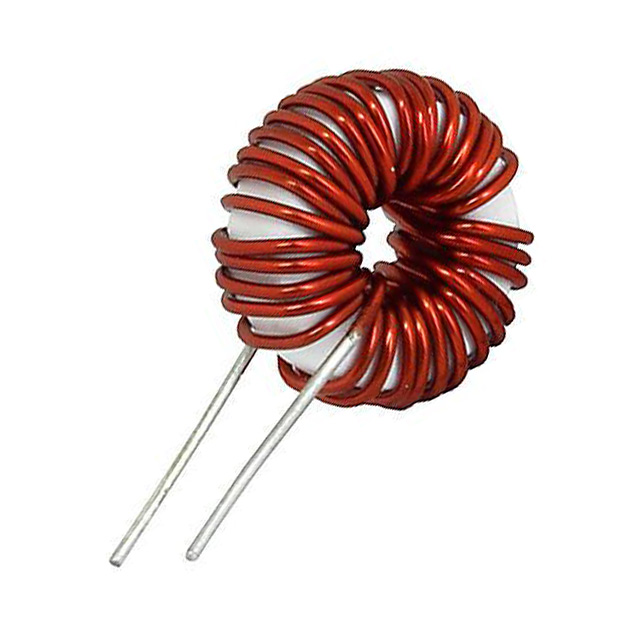

Inductor 600 mA 1.55Ohm Radial, Vertical (Open)
