11200031601
ActiveHARTING Technology Group

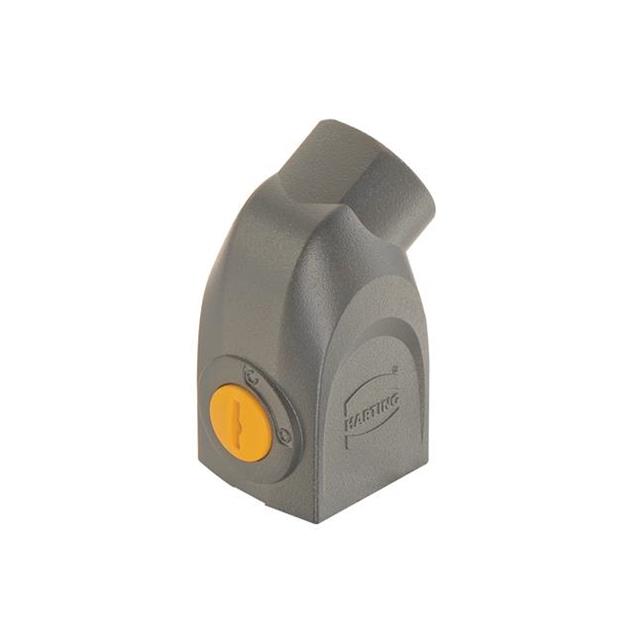

ANGLED ENTRY HOOD M25
Deep-Dive with AI
Search across all available documentation for this part.
11200031601
ActiveHARTING Technology Group
ANGLED ENTRY HOOD M25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 11200031601 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Finish | Epoxy Powder Paint |
| Housing Material | Zinc, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Push Button Snap Lock on Hood |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 36.4 mm |
| Size / Dimension [x] | 1.433 in |
| Size / Dimension [y] | 34.1 mm |
| Size / Dimension [y] | 1.343 " |
| Size / Dimension [z] | 2.862 " |
| Size / Dimension [z] | 72.7 mm |
| Style | Side Entry |
| Thread Size | M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.39 | |
| 10 | $ 23.09 | |||
| 25 | $ 20.71 | |||
| 50 | $ 19.16 | |||
| 100 | $ 17.81 | |||
| 250 | $ 16.27 | |||
| 500 | $ 15.27 | |||
Description
General part information
11200031 Series
Hood Connector Side Entry M25 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
