Q-0600H000S002M
ActiveAmphenol Custom Cable

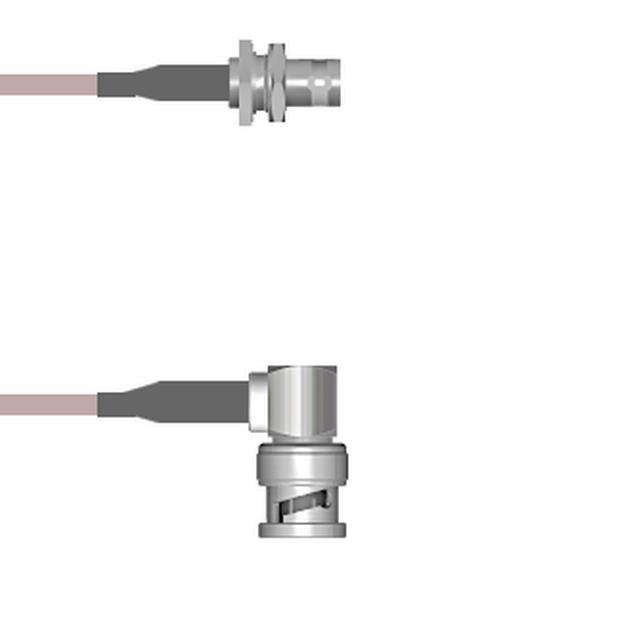

CBL ASSY BNC JACK TO PLUG 6.6'
Deep-Dive with AI
Search across all available documentation for this part.
Q-0600H000S002M
ActiveAmphenol Custom Cable
CBL ASSY BNC JACK TO PLUG 6.6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0600H000S002M |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | BNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-179 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 6.6 ft |
| Length | 78.7 in |
| Length | 2 m |
| Overall Impedance | 75 Ohms |
| Style | BNC to BNC |
Q-0600H0 Series
| Part | Frequency - Max [Max] | 2nd Contact Gender | Cable Type | Length | Length | Style | 1st Connector | 2nd Connector | 1st Connector Mounting Type | 1st Connector Mounting Feature | Color | 1st Contact Gender | Features | Overall Impedance | 2nd Connector Mounting Type | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | 4 GHz | Male | RG-179 | 91.44 cm | 36 in | BNC to BNC | BNC Jack | BNC Plug Right Angle | Panel Mount | Bulkhead - Front Side Nut | Copper | Female | Shielded | 75 Ohms | Free Hanging (In-Line) | |
Amphenol Custom Cable | 4 GHz | Male | RG-179 | 76.2 mm | 3 in | BNC to BNC | BNC Jack | BNC Plug Right Angle | Panel Mount | Bulkhead - Front Side Nut | Copper | Female | Shielded | 75 Ohms | Free Hanging (In-Line) | |
Amphenol Custom Cable | 4 GHz | Male | RG-179 | 609.6 mm | 24 " | BNC to BNC | BNC Jack | BNC Plug Right Angle | Panel Mount | Bulkhead - Front Side Nut | Copper | Female | Shielded | 75 Ohms | Free Hanging (In-Line) | |
Amphenol Custom Cable | 4 GHz | Male | RG-179 | 2.5 m | 98.4 in | BNC to BNC | BNC Jack | BNC Plug Right Angle | Panel Mount | Bulkhead - Front Side Nut | Copper | Female | Shielded | 75 Ohms | Free Hanging (In-Line) | 8.2 ' |
Amphenol Custom Cable | 4 GHz | Male | RG-179 | 2 m | 78.7 in | BNC to BNC | BNC Jack | BNC Plug Right Angle | Panel Mount | Bulkhead - Front Side Nut | Copper | Female | Shielded | 75 Ohms | Free Hanging (In-Line) | 6.6 ft |
Amphenol Custom Cable | 4 GHz | Male | RG-179 | 2.7 m | 108 in | BNC to BNC | BNC Jack | BNC Plug Right Angle | Panel Mount | Bulkhead - Front Side Nut | Copper | Female | Shielded | 75 Ohms | Free Hanging (In-Line) | 9 ft |
Amphenol Custom Cable | 4 GHz | Male | RG-179 | 2.1 m | 84 in | BNC to BNC | BNC Jack | BNC Plug Right Angle | Panel Mount | Bulkhead - Front Side Nut | Copper | Female | Shielded | 75 Ohms | Free Hanging (In-Line) | 7 ft |
Amphenol Custom Cable | 4 GHz | Male | RG-179 | 750 mm | 29.53 " | BNC to BNC | BNC Jack | BNC Plug Right Angle | Panel Mount | Bulkhead - Front Side Nut | Copper | Female | Shielded | 75 Ohms | Free Hanging (In-Line) | |
Amphenol Custom Cable | 4 GHz | Male | RG-179 | 1200 mm | 48 in | BNC to BNC | BNC Jack | BNC Plug Right Angle | Panel Mount | Bulkhead - Front Side Nut | Copper | Female | Shielded | 75 Ohms | Free Hanging (In-Line) | 4 ft |
Amphenol Custom Cable | 4 GHz | Male | RG-179 | 1 m | 39.4 in | BNC to BNC | BNC Jack | BNC Plug Right Angle | Panel Mount | Bulkhead - Front Side Nut | Copper | Female | Shielded | 75 Ohms | Free Hanging (In-Line) | 3.3 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 83.81 | |
| 25 | $ 78.05 | |||
| 50 | $ 72.30 | |||
| 100 | $ 67.37 | |||
| 250 | $ 63.25 | |||
Description
General part information
Q-0600H0 Series
Cable Assembly Coaxial BNC to BNC RG-179 78.7" (2.0m) 6.6'
Documents
Technical documentation and resources
No documents available
