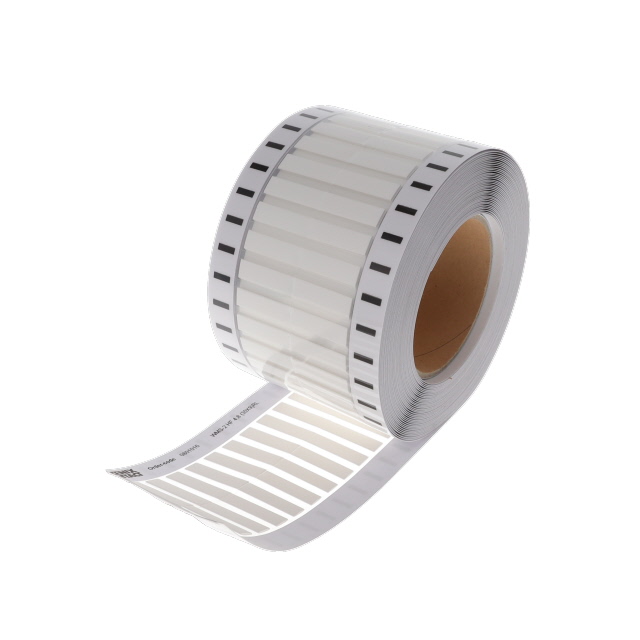

0801016
ActivePhoenix Contact
SHRINK SLEEVE ROLL WHITE UNMARKE
Deep-Dive with AI
Search across all available documentation for this part.
0801016
ActivePhoenix Contact
SHRINK SLEEVE ROLL WHITE UNMARKE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0801016 |
|---|---|
| Color | White |
| Label Size [diameter] | 1.18 in |
| Label Size [diameter] | 30 mm |
| Label Size [Max] | 4.8 mm |
| Label Size [Max] | 0.19 in |
| Label Size [Min] | 2.4 mm |
| Label Size [Min] | 0.09 in |
| Label Size [x] | 9 mm |
| Label Size [x] | 0.35 in |
| Label Type | Heat Shrinkable |
| Material | Polyolefin (PO), Diesel Resistant |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
WMS-2 HF Series
| Part | Label Type | Material | Label Size [x] | Label Size [x] | Label Size [y] | Label Size [y] | Color | Operating Temperature [Min] | Operating Temperature [Max] | For Use With/Related Products | Label Size [diameter] | Label Size [Max] | Label Size [x] | Label Size [Max] | Label Size [diameter] | Label Size [Min] | Label Size [Min] | Label Size [custom] | Label Size [custom] | Label Size [custom] | Label Size [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | Heat Shrinkable | Halogen Free Polyolefin (PO) | 60 mm | 2.362 " | 16 mm | 0.63 " | White | -30 ░C | 105 ░C | Thermomark Printer | |||||||||||
Phoenix Contact | Continuous Heat Shrinkable | Halogen Free Polyolefin (PO) | 10 mm | 0.394 " | 100 m | 328.1 ' | White | -30 ░C | 105 ░C | Thermomark Printer | |||||||||||
Phoenix Contact | Continuous Heat Shrinkable | Halogen Free Polyolefin (PO) | 5 mm | 0.197 in | 30 m | 98.43 ft | White | -30 ░C | 105 ░C | Thermomark Printer | |||||||||||
Phoenix Contact | Heat Shrinkable | Polyolefin (PO) Diesel Resistant | 0.35 in | White | -30 ░C | 105 ░C | 1.18 in | 4.8 mm | 9 mm | 0.19 in | 30 mm | 2.4 mm | 0.09 in | ||||||||
Phoenix Contact | Heat Shrinkable | Halogen Free Polyolefin (PO) | White | -30 ░C | 105 ░C | Thermomark Printer | 5 mm | 60 mm | 2.362 in | 0.197 in | |||||||||||
Phoenix Contact | Heat Shrinkable | Halogen Free Polyolefin (PO) | 60 mm | 2.362 " | 9 mm | 0.354 " | White | -30 ░C | 105 ░C | Thermomark Printer | |||||||||||
Phoenix Contact | Heat Shrinkable | Halogen Free Polyolefin (PO) | White | -30 ░C | 105 ░C | Thermomark Printer | |||||||||||||||
Phoenix Contact | Heat Shrinkable | Halogen Free Polyolefin (PO) | 10 mm | 0.394 " | 60 mm | 2.362 in | White | -30 ░C | 105 ░C | Thermomark Printer | |||||||||||
Phoenix Contact | Continuous Heat Shrinkable | Halogen Free Polyolefin (PO) | White | -30 ░C | 105 ░C | Thermomark Printer | 0.197 in 5 mm | 0.472 in 12 mm | |||||||||||||
Phoenix Contact | Continuous Heat Shrinkable | Halogen Free Polyolefin (PO) | White | -30 ░C | 105 ░C | Thermomark Printer | 9 mm | 12 mm | 0.472 in | 0.354 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 369.56 | |
| 10 | $ 366.63 | |||
Description
General part information
WMS-2 HF Series
White Heat Shrinkable Label 0.35" W x 1.18" Dia (9.0mm x 30.0mm); Cable O.D. 0.09" ~ 0.19" (2.4mm ~ 4.8mm)
Documents
Technical documentation and resources
No documents available
