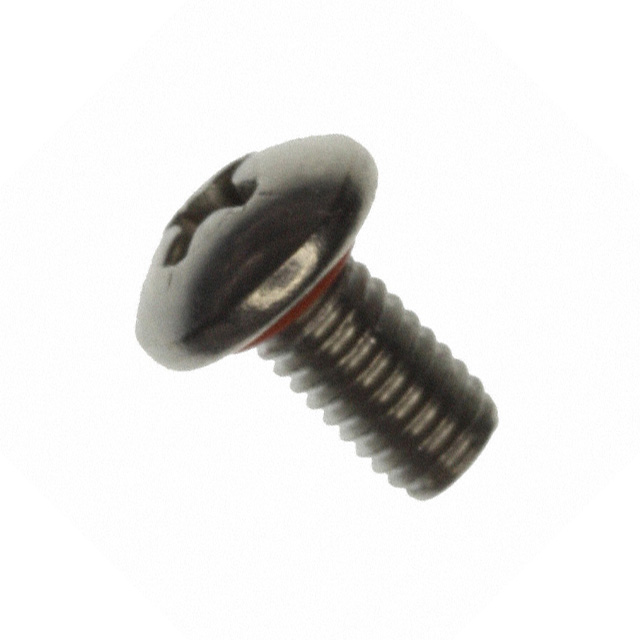

R10-32X3/8 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 10-32

Search across all available documentation for this part.

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 10-32

Technical Specifications

Parameters and characteristics for this part

Part	Head Diameter [diameter]	Head Diameter [diameter]	Type	Length - Overall	Length - Overall	Drive Type	Head Height	Head Height	Material	Thread Size	Length - Below Head	Length - Below Head	Length - Below Head	Features	Screw Head Type	Length - Overall [x]	Length - Overall [x]	Length - Below Head
APM HEXSEAL R10-32X1/2 2701	10.24 mm	0.403 in	Machine Screw	0.633 in	16.08 mm	Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	12.7 mm	1/2	0.5 in	Self Sealing	Pan Head
APM HEXSEAL R10-32X3/8 2701	10.24 mm	0.403 in	Machine Screw			Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	0.375 "		0.375 "	Self Sealing	Pan Head	12.9 mm	0.508 in	9.53 mm
APM HEXSEAL R10-32X5/8 2701	10.24 mm	0.403 in	Machine Screw			Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	15.88 mm		0.625 in	Self Sealing	Pan Head	19.25 mm	0.758 in	0.625 in
APM HEXSEAL R10-32X1 2701	10.24 mm	0.403 in	Machine Screw	1.133 in	28.78 mm	Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	25.4 mm		1 in	Self Sealing	Pan Head
APM HEXSEAL R10-32X7/16 2701	10.24 mm	0.403 in	Machine Screw			Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	11.13 mm	7/16	0.438 "	Self Sealing	Pan Head	14.5 mm	0.571 in
APM HEXSEAL R10-32X1/4-5701	10.24 mm	0.403 in	Machine Screw			Phillips				#10-32	6.35 mm		0.25 in	Self Sealing	Pan Head			0.25 in
APM HEXSEAL R10-32X3/4 2701	10.24 mm	0.403 in	Machine Screw		22.43 mm	Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	19.05 mm		0.75 "	Self Sealing	Pan Head		0.883 in	0.75 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

#10-32 Pan Head Machine Screw Phillips Drive Stainless Steel
