6002-7051-003

Active

Radiall USA, Inc.

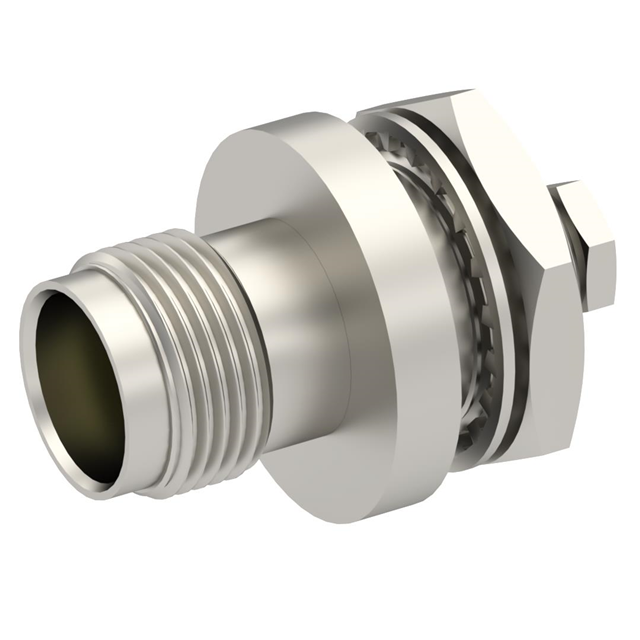

TNC F STR BHD CL 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC F STR BHD CL 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	6002-7051-003

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Number of Ports	Mating Cycles	Contact Termination	Connector Style	Body Finish	Mounting Feature	Connector Type	Center Contact Material	Shield Termination	Body Material	Center Contact Plating	Frequency - Max [Max]	Includes	Voltage Rating	Dielectric Material	Cable Group	Housing Color	Impedance	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. 6002-7051-003	1	500	Solder	TNC	Nickel	Bulkhead - Rear Side Nut	Female Socket Jack	Beryllium Copper	Clamp	Brass	Gold	11 GHz	1 Connector 1 Gasket 1 Lockwasher 1 Nut	500 V	Polytetrafluoroethylene (PTFE)	316 RG-174	Silver	50 Ohms	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
