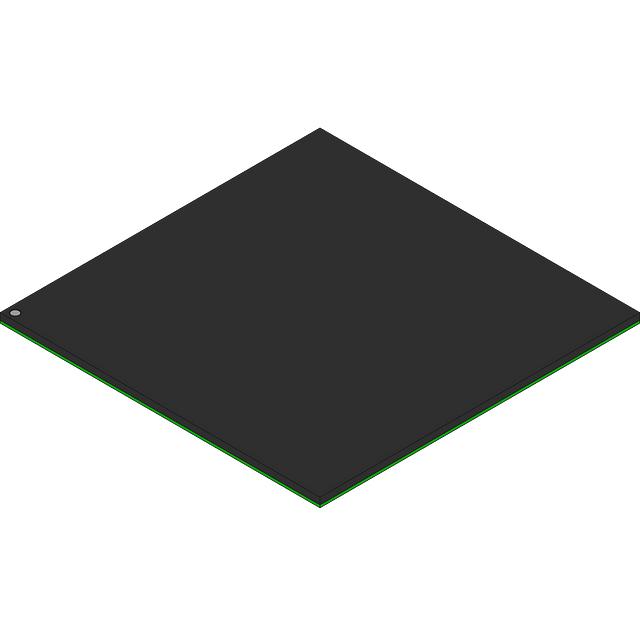

XCV400E-6BG560C0773

Active

AMD

FPGA, 2400 CLBS, 468252 GATES, 2

Search across all available documentation for this part.

Active

AMD

FPGA, 2400 CLBS, 468252 GATES, 2

Technical Specifications

Parameters and characteristics for this part

Specification	XCV400E-6BG560C0773

Mounting Type	Surface Mount
Number of Gates	569952
Number of I/O	404
Number of LABs/CLBs	2400
Number of Logic Elements/Cells	10800
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	560-LBGA Exposed Pad, Metal
Supplier Device Package	560-MBGA (42.5x42.5)
Total RAM Bits	163840 Bits
Voltage - Supply [Max]	1.89 V
Voltage - Supply [Min]	1.71 V

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of LABs/CLBs	Package / Case	Number of I/O	Total RAM Bits	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Number of Logic Elements/Cells	Number of Gates
AMD XCV400E-6BG560C	Surface Mount	1.89 V	1.71 V	2400	560-LBGA Exposed Pad Metal	404	163840 Bits	0 °C	85 °C	560-MBGA (42.5x42.5)	10800	569952
AMD XCV400E-6BG560C0773	Surface Mount	1.89 V	1.71 V	2400	560-LBGA Exposed Pad Metal	404	163840 Bits	0 °C	85 °C	560-MBGA (42.5x42.5)	10800	569952
AMD XCV400E-6BG560I	Surface Mount	1.89 V	1.71 V	2400	560-LBGA Exposed Pad Metal	404	163840 Bits	-40 C	100 °C	560-MBGA (42.5x42.5)	10800	569952
AMD XCV400E-8PQ240C	Surface Mount	1.89 V	1.71 V	2400	240-BFQFP	158	163840 Bits	0 °C	85 °C	240-PQFP (32x32)	10800	569952
AMD XCV400E-8BG432C	Surface Mount	1.89 V	1.71 V	2400	432-LBGA Exposed Pad Metal	316 I/O	163840 Bits	0 °C	85 °C	432-MBGA (40x40)	10800	569952
AMD XCV400E-7BG560C	Surface Mount	1.89 V	1.71 V	2400	560-LBGA Exposed Pad Metal	404	163840 Bits	0 °C	85 °C	560-MBGA (42.5x42.5)	10800	569952
AMD XCV400E-6PQ240I	Surface Mount	1.89 V	1.71 V	2400	240-BFQFP	158	163840 Bits	-40 C	100 °C	240-PQFP (32x32)	10800	569952
AMD XCV400E-6BG432C	Surface Mount	1.89 V	1.71 V	2400	432-LBGA Exposed Pad Metal	316 I/O	163840 Bits	0 °C	85 °C	432-MBGA (40x40)	10800	569952
AMD XCV400E-7PQ240C	Surface Mount	1.89 V	1.71 V	2400	240-BFQFP	158	163840 Bits	0 °C	85 °C	240-PQFP (32x32)	10800	569952

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 117.42

General part information

Virtex®-E Field Programmable Gate Array (FPGA) IC 404 163840 10800 560-LBGA Exposed Pad, Metal

Technical documentation and resources

No documents available
