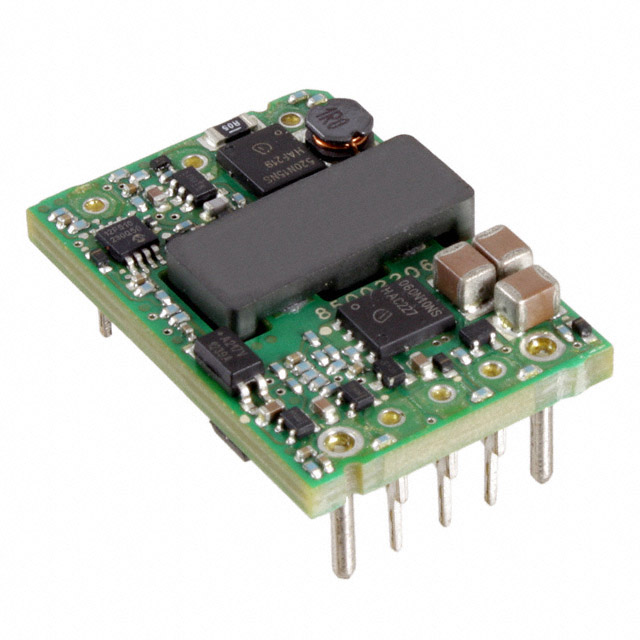

KBVW006A0B41Z
ActiveOmniOn Power™
DC DC CONVERTER 12V 72W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KBVW006A0B41Z
ActiveOmniOn Power™
DC DC CONVERTER 12V 72W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KBVW006A0B41Z |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 90.5 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module, 1/16 Brick |
| Power (Watts) | 72 W |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [z] | 9.4 mm |
| Size / Dimension [z] | 0.37 in |
| Type | Intermediate Bus Converter |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.47 | |
| 5 | $ 34.20 | |||
| 10 | $ 33.94 | |||
| 25 | $ 33.41 | |||
| 75 | $ 31.81 | |||
| 150 | $ 29.16 | |||
| 300 | $ 28.63 | |||
Description
General part information
KBVW006 Series
Intermediate Bus Converter DC DC Converter 1 Output 12V 6A 36V - 75V Input
