Q-3B0110003.75M

Active

Amphenol Custom Cable

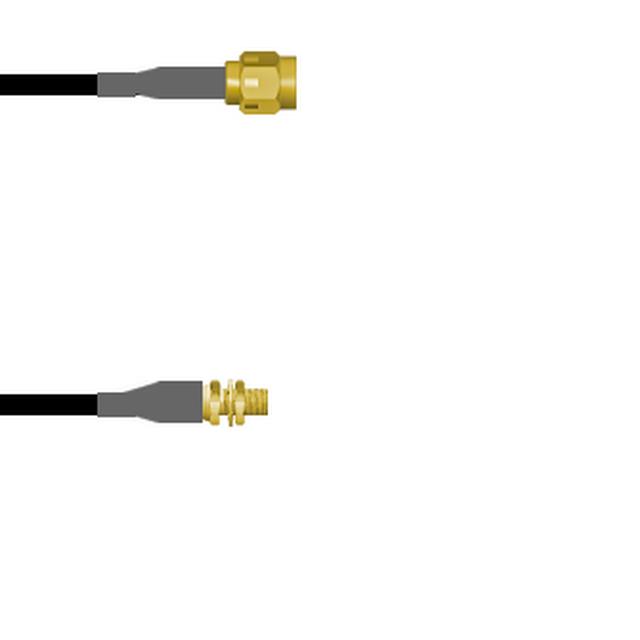

CBL ASSY SMA-MCX PLG-SCKT 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-3B0110003.75M

Active

Amphenol Custom Cable

CBL ASSY SMA-MCX PLG-SCKT 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3B0110003.75M

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Socket
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to MCX

Q-3B0110 Series

Part	2nd Connector Mounting Type	1st Connector	1st Connector Mounting Type	2nd Connector Mounting Feature	Cable Type	1st Contact Gender	Length	Length	2nd Contact Gender	Features	Cable Impedance	Frequency - Max [Max]	Style	2nd Connector	Overall Impedance	Connector Impedance	Color	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-3B0110003012I	Panel Mount	SMA Plug	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-174	Male	12 "	304.8 mm	Female	Shielded	50 Ohms	1 GHz	SMA to MCX	MCX Socket	50 Ohms	50 Ohms	Black
Amphenol Custom Cable Q-3B0110003009I	Panel Mount	SMA Plug	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-174	Male	9 "	228.6 mm	Female	Shielded	50 Ohms	1 GHz	SMA to MCX	MCX Socket	50 Ohms	50 Ohms	Black
Amphenol Custom Cable Q-3B0110003006I	Panel Mount	SMA Plug	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-174	Male	6 in	152.4 mm	Female	Shielded	50 Ohms	1 GHz	SMA to MCX	MCX Socket	50 Ohms	50 Ohms	Black
Amphenol Custom Cable Q-3B0110003.75M	Panel Mount	SMA Plug	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-174	Male	29.53 "	750 mm	Female	Shielded	50 Ohms	1 GHz	SMA to MCX	MCX Socket	50 Ohms	50 Ohms	Black
Amphenol Custom Cable Q-3B0110003003M	Panel Mount	SMA Plug	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-174	Male	118.1 in	3 m	Female	Shielded	50 Ohms	1 GHz	SMA to MCX	MCX Socket	50 Ohms	50 Ohms	Black	9.8 '
Amphenol Custom Cable Q-3B0110003.25M	Panel Mount	SMA Plug	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-174	Male			Female	Shielded	50 Ohms	1 GHz	SMA to MCX	MCX Socket	50 Ohms	50 Ohms	Black		9.843 "	250 mm
Amphenol Custom Cable Q-3B01100030.5M	Panel Mount	SMA Plug	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-174	Male	19.69 "	50 cm	Female	Shielded	50 Ohms	1 GHz	SMA to MCX	MCX Socket	50 Ohms	50 Ohms	Black
Amphenol Custom Cable Q-3B0110003003I	Panel Mount	SMA Plug	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-174	Male	3 in	76.2 mm	Female	Shielded	50 Ohms	1 GHz	SMA to MCX	MCX Socket	50 Ohms	50 Ohms	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.94
		25	$ 78.39
		50	$ 76.83
		100	$ 75.28
		250	$ 73.72

Description

General part information

Q-3B0110 Series

Cable Assembly Coaxial SMA to MCX RG-174 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
