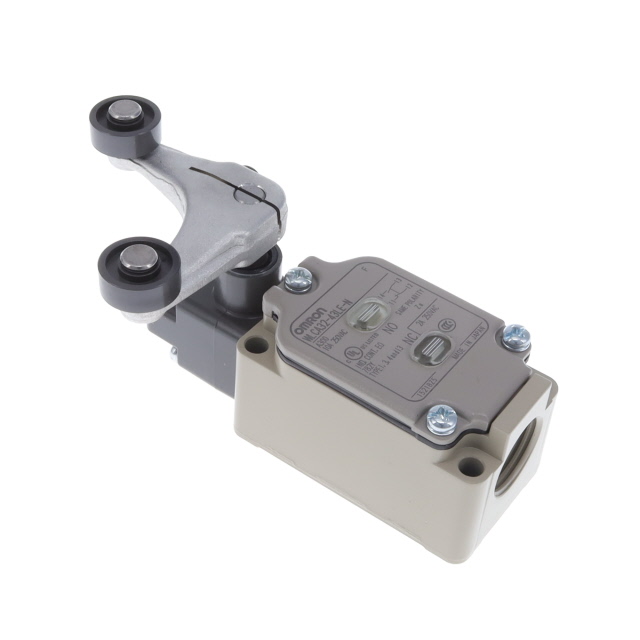

WLCA32-43LE-N

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	WLCA32-43LE-N

Actuator Type	Side Rotary, Fork Lever Lock (Yoke)
Circuit	SPDT (DB/DM)
Electrical Life	750000 Cycles
Features	Status Indicator
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	15000000 Cycles
Mounting Type	Chassis Mount
Operating Force	1200 gf
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-10 °C
Overtravel	35 °
Pretravel	55 °
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Features	Pretravel	Overtravel	Voltage Rating - DC	Electrical Life	Termination Style	Operating Force	Ingress Protection	Mounting Type	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Switch Function	Circuit	Voltage Rating - AC
Omron Electronics Inc-EMC Div WLCA32-43LE-N	Status Indicator	55 °	35 °	30 V	750000 Cycles	Screw Terminal	1200 gf	IP67 - Dust Tight Waterproof	Chassis Mount	15000000 Cycles	80 C	-10 °C	Side Rotary Fork Lever Lock (Yoke)	On-Mom	SPDT (DB/DM)	125 V
Omron Electronics Inc-EMC Div WLCA32-043LD-N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT (DB/DM) Chassis Mount
