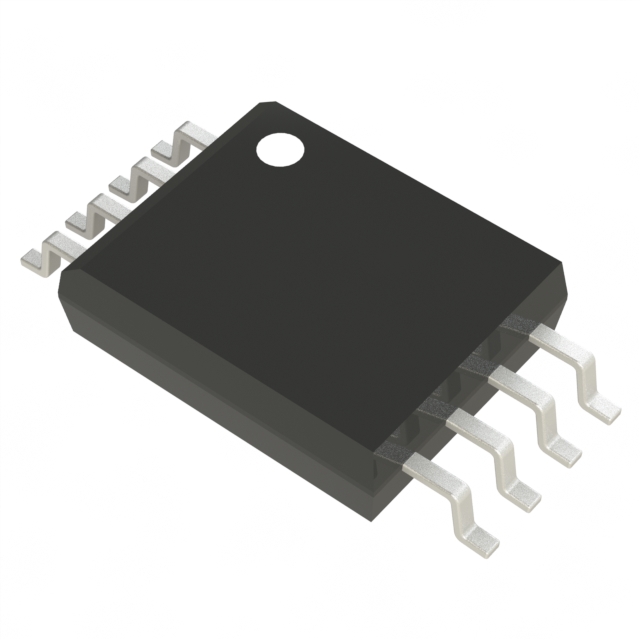

SI8947AD-IS4

Active

Skyworks Solutions Inc.

POWER ISOLATION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI8947AD-IS4

Active

Skyworks Solutions Inc.

POWER ISOLATION

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI8947AD-IS4

Applications	ACDC Switching Power Supplies, Controller
Current - Supply	6.9 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SOIC
Package / Case [custom]	0.295 in
Package / Case [custom]	7.5 mm
Supplier Device Package	8-SOIC
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3 V

SI8947 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Supplier Device Package	Current - Supply	Package / Case [custom]	Package / Case [custom]
Skyworks Solutions Inc. SI8947BB-ISR	5.5 V	3 V	Surface Mount	8-SOIC	3.9 mm	0.154 in	-40 °C	125 °C	ACDC Switching Power Supplies Controller	8-SOIC	6.9 mA
Skyworks Solutions Inc. SI8947AB-AS	5.5 V	3 V	Surface Mount	8-SOIC	3.9 mm	0.154 in	-40 °C	125 °C	ACDC Switching Power Supplies Controller	8-SOIC	6.6 mA
Skyworks Solutions Inc. SI8947BB-IS	5.5 V	3 V	Surface Mount	8-SOIC	3.9 mm	0.154 in	-40 °C	125 °C	ACDC Switching Power Supplies Controller	8-SOIC	6.9 mA
Skyworks Solutions Inc. SI8947AB-ASR	5.5 V	3 V	Surface Mount	8-SOIC	3.9 mm	0.154 in	-40 °C	125 °C	ACDC Switching Power Supplies Controller	8-SOIC	6.6 mA
Skyworks Solutions Inc. SI8947AD-IS4	5.5 V	3 V	Surface Mount	8-SOIC			-40 °C	125 °C	ACDC Switching Power Supplies Controller	8-SOIC	6.9 mA	0.295 in	7.5 mm
Skyworks Solutions Inc. SI8947BD-AS4	5.5 V	3 V	Surface Mount	8-SOIC			-40 °C	125 °C	ACDC Switching Power Supplies Controller	8-SOIC	6.6 mA	0.295 in	7.5 mm
Skyworks Solutions Inc. SI8947AD-AS4R	5.5 V	3 V	Surface Mount	8-SOIC			-40 °C	125 °C	ACDC Switching Power Supplies Controller	8-SOIC	6.6 mA	0.295 in	7.5 mm
Skyworks Solutions Inc. SI8947BB-ASR	5.5 V	3 V	Surface Mount	8-SOIC	3.9 mm	0.154 in	-40 °C	125 °C	ACDC Switching Power Supplies Controller	8-SOIC	6.6 mA
Skyworks Solutions Inc. SI8947AD-IS4R	5.5 V	3 V	Surface Mount	8-SOIC			-40 °C	125 °C	ACDC Switching Power Supplies Controller	8-SOIC	6.9 mA	0.295 in	7.5 mm
Skyworks Solutions Inc. SI8947AD-AS4	5.5 V	3 V	Surface Mount	8-SOIC			-40 °C	125 °C	ACDC Switching Power Supplies Controller	8-SOIC	6.6 mA	0.295 in	7.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.35
		10	$ 5.73
		80	$ 4.75
		320	$ 4.53
		560	$ 4.13
		1040	$ 3.60
		2560	$ 3.47

Description

General part information

SI8947 Series

Controller, ACDC Switching Power Supplies PMIC 8-SOIC

Documents

Technical documentation and resources
