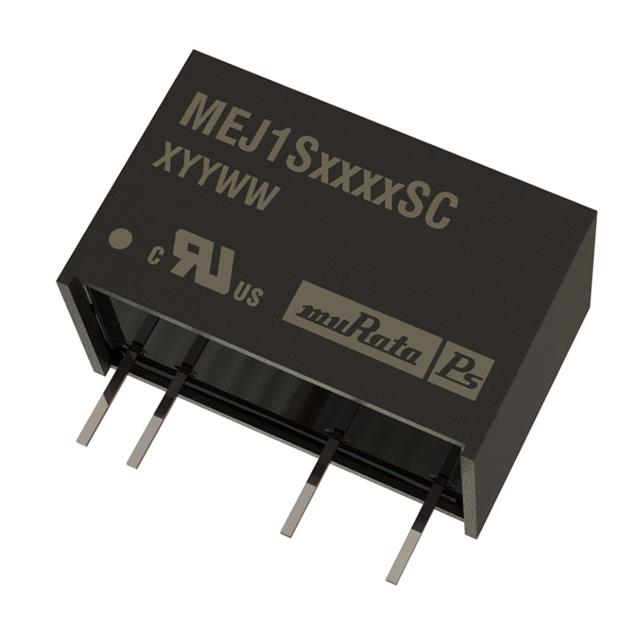

MEJ1S2415SC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, SIP, 1:1, 1 W, 1 OUTPUT, 15 V
Deep-Dive with AI
Search across all available documentation for this part.
MEJ1S2415SC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, SIP, 1:1, 1 W, 1 OUTPUT, 15 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MEJ1S2415SC |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 66 mA |
| Efficiency | 78 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension [x] | 19.7 mm |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [y] | 0.39 " |
| Size / Dimension [y] | 10 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 5.2 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MEJ1 Series
Isolated DC/DC Converters - Through Hole 21.6V-26.4V 66MA
