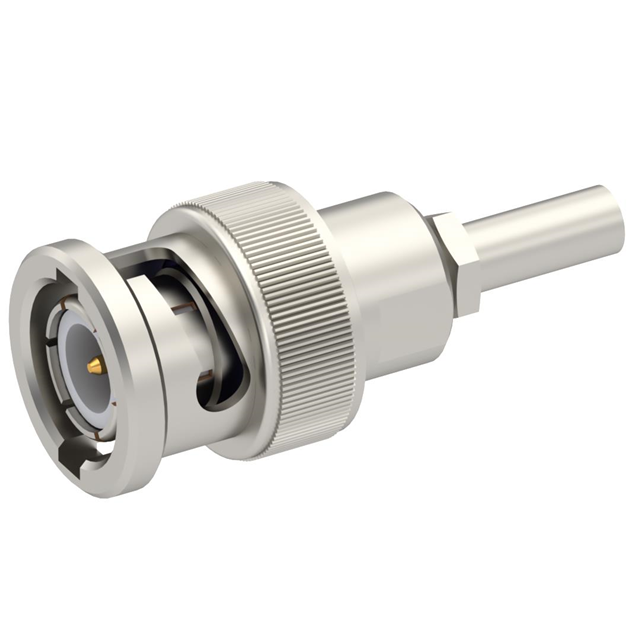

6500-7071-019

Active

Radiall USA, Inc.

BNC / STRAIGHT PLUG MALE CRIMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / STRAIGHT PLUG MALE CRIMP T

Technical Specifications

Parameters and characteristics for this part

Specification	6500-7071-019

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-316DS
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Center Contact Material	Mating Cycles	Connector Style	Voltage Rating	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Mounting Type	Cable Group	Cable Group	Connector Type	Shield Termination	Body Finish	Impedance	Number of Ports	Center Contact Plating	Fastening Type	Body Material	Housing Color	Dielectric Material
Radiall USA, Inc. 6500-7071-046	Beryllium Copper	500	BNC	500 V	1.5 GHz	85 °C	-40 °C	Crimp	Free Hanging (In-Line)	RG-6	6 A	Male Pin Plug	Crimp	Nickel	75 Ohms	1	Gold	Bayonet Lock	Brass	Silver	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. 6500-7071-019		500	BNC		4 GHz	165 °C	-65 ░C	Crimp	Free Hanging (In-Line)	RG-316DS		Male Pin Plug	Crimp	Nickel	50 Ohms	1	Gold	Bayonet Lock	Brass	Silver	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
