A06XSR06XSR36R102B

Active

JST Sales America Inc.

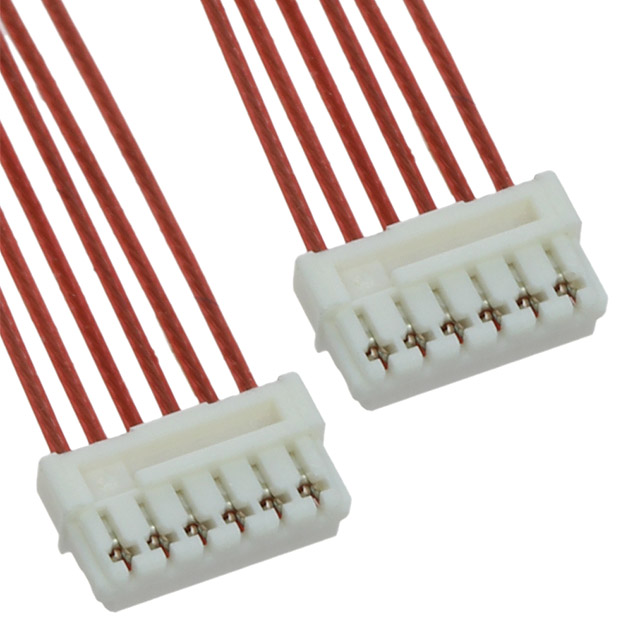

JUMPER 06XSR-36S - 06XSR-36S 4"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 06XSR-36S - 06XSR-36S 4"

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Length [x]	Contact Finish	Number of Positions	Cable Termination	Pitch - Connector	Pitch - Connector	Number of Rows	Connector Type	Color	Length	Length	Length	Length
JST Sales America Inc. A06XSR06XSR36R102B	4 "	0.333 ft	101.6 mm	Tin	6	IDC	0.024 "	0.6 mm	1	Socket to Socket	Individual Red
JST Sales America Inc. A06XSR06XSR36R295B	11.61 "	0.968 '	295 mm	Tin	6	IDC	0.024 "	0.6 mm	1	Socket to Socket	Individual Red
JST Sales America Inc. A06XSR06XSR36R152A				Tin	6	IDC	0.024 "	0.6 mm	1	Socket to Socket Reversed	Individual Red	152.4 mm	6 "	0.5 '
JST Sales America Inc. A06XSR06XSR36R51A				Tin	6	IDC	0.024 "	0.6 mm	1	Socket to Socket Reversed	Individual Red	50.8 mm	2 "		0.167 '
JST Sales America Inc. A06XSR06XSR36R254B				Tin	6	IDC	0.024 "	0.6 mm	1	Socket to Socket	Individual Red	254 mm	10 in		0.833 ft
JST Sales America Inc. A06XSR06XSR36R203A				Tin	6	IDC	0.024 "	0.6 mm	1	Socket to Socket Reversed	Individual Red	203.2 mm	8 in		0.667 ft
JST Sales America Inc. A06XSR06XSR36R254A				Tin	6	IDC	0.024 "	0.6 mm	1	Socket to Socket Reversed	Individual Red	254 mm	10 in		0.833 ft
JST Sales America Inc. A06XSR06XSR36R102A	4 "	0.333 ft	101.6 mm	Tin	6	IDC	0.024 "	0.6 mm	1	Socket to Socket Reversed	Individual Red
JST Sales America Inc. A06XSR06XSR36R203B				Tin	6	IDC	0.024 "	0.6 mm	1	Socket to Socket	Individual Red	203.2 mm	8 in		0.667 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Cable Assembly Rectangular Socket to Socket 0.333' (101.60mm, 4.00")
