9001-9023-003

Active

Radiall USA, Inc.

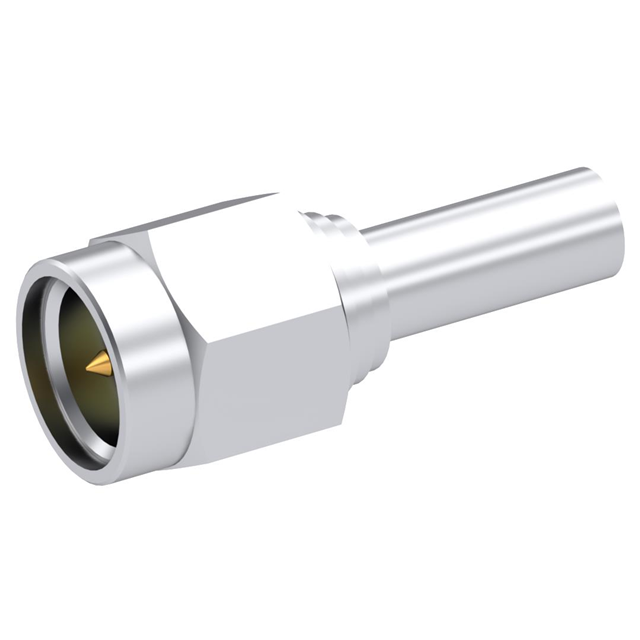

SMA / STRAIGHT PLUG MALE CRIMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT PLUG MALE CRIMP T

Technical Specifications

Parameters and characteristics for this part

Specification	9001-9023-003

Body Material	Stainless Steel
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Mating Cycles	Mounting Type	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Dielectric Material	Housing Color	Impedance	Cable Group	Connector Type	Center Contact Material	Voltage Rating	Contact Termination	Number of Ports	Connector Style	Frequency - Max [Max]	Shield Termination
Radiall USA, Inc. 9001-9023-003	500	Free Hanging (In-Line)	Stainless Steel	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms	316 RG-174	Male Pin Plug	Beryllium Copper	250 VDC	Crimp	1	SMA	18 GHz	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
