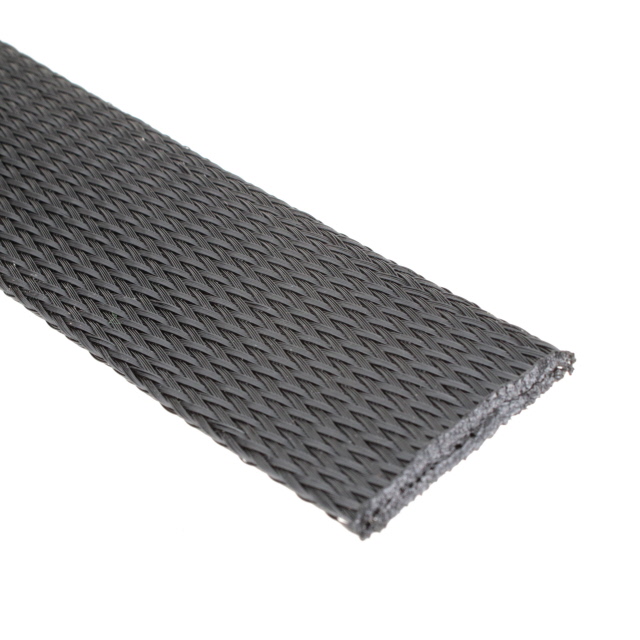

PTP2.00BK50

Active

Techflex

EXPAND SLEEVE 1.5" X 50' BLACK

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVE 1.5" X 50' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	PTP2.00BK50

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	88.9 mm
Diameter - Inside, Expanded [diameter]	3.5 in
Diameter - Inside, Non-Expanded [diameter]	1.5 in
Diameter - Inside, Non-Expanded [diameter]	38.1 mm
Environment Protection	UV Resistant
Length	15.24 m
Length [x]	50 ft
Material	Polyethylene Terephthalate (PET)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.024 in
Wall Thickness	0.61 mm

Part	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Type	Material	Wall Thickness	Wall Thickness	Environment Protection	Type Attributes	Length	Length [x]	Length
Techflex PTP2.00BK50	1.5 in	38.1 mm	Abrasion Resistant Fray Resistant	88.9 mm	3.5 in	125 °C	-70 °C	Black	Sleeve	Polyethylene Terephthalate (PET)	0.024 in	0.61 mm	UV Resistant	Expandable	15.24 m	50 ft
Techflex PTP2.00BK200	1.5 in	38.1 mm	Abrasion Resistant Fray Resistant	88.9 mm	3.5 in	125 °C	-70 °C	Black	Sleeve	Polyethylene Terephthalate (PET)	0.024 in	0.61 mm	UV Resistant	Expandable	60.96 m		200 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sleeve X 50.00' (15.24m) Black

Technical documentation and resources
