SF2007/8 WH005

Active

ALPHA WIRE

SLEEVING 0.875" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.875" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics for this part

Specification	SF2007/8 WH005

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	White
Diameter - Inside [diameter]	22.22 mm
Diameter - Inside [diameter]	0.875 in
Diameter - Outside [diameter]	0.961 in
Diameter - Outside [diameter]	24.4 mm
Environment Protection	Corrosion Resistant
Features	Clean Cut
Length	100 ft
Length	30.48 m
Material	Fiberglass, Silicone Coated
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Abrasion Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type Attributes	Material Flammability Rating	Color	Wall Thickness [custom]	Wall Thickness [custom]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Environment Protection	Features	Length	Length	Material
ALPHA WIRE SF2007/8 WH005	Abrasion Resistant Fray Resistant	22.22 mm	0.875 in	Braided	UL VW-1	White	0.025 in	0.64 mm	0.961 in	24.4 mm	Sleeving	200 °C	-70 °C	Corrosion Resistant	Clean Cut	100 ft	30.48 m	Fiberglass Silicone Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

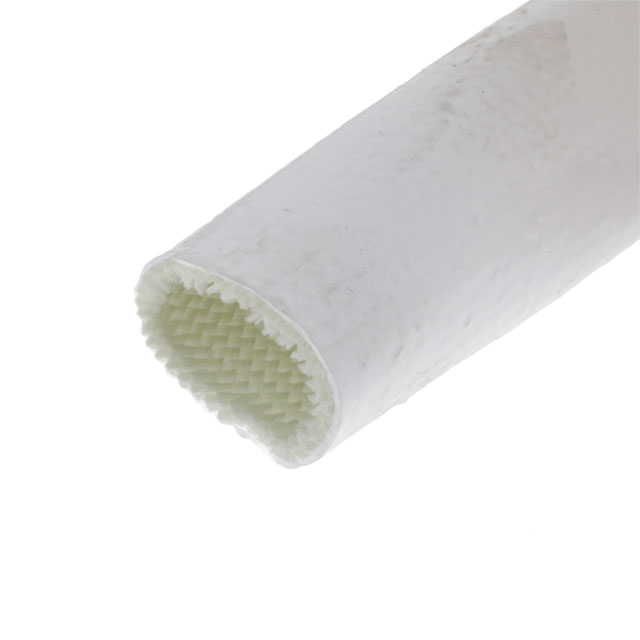

White Fiberglass, Silicone Coated Braided Sleeving 0.875" (22.22mm) 100' (30.48m)
