E2PBG

Active

Hoffman Enclosures, Inc.

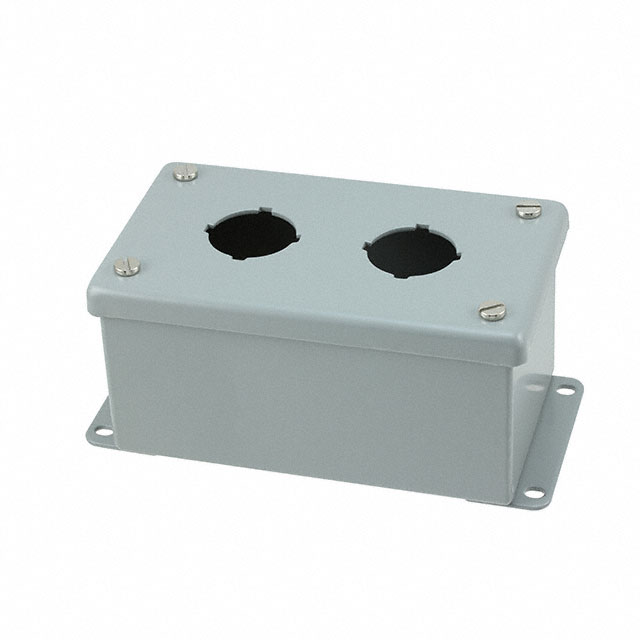

BOX STEEL GRAY 5.75"L X 3.27"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX STEEL GRAY 5.75"L X 3.27"W

Technical Specifications

Parameters and characteristics for this part

Specification	E2PBG

Area (L x W)	18.7 in²
Area (L x W)	121 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Features	Pushbutton Holes - 2, Mounting Flange
Height [z]	70 mm
Height [z]	2.756 "
Material	Metal, Steel
Ratings	IP65, NEMA 13, UL-508A, NEMA 12
Size / Dimension [x]	5.748 in
Size / Dimension [x]	146 mm
Size / Dimension [y]	83 mm
Size / Dimension [y]	3.268 in
Thickness	16 Gauge
Weight	861.8 g
Weight	1.9 lbs

Part	Ratings	Color	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Weight	Weight	Design	Features	Thickness	Material	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]
Hoffman Enclosures, Inc. E2PBG	IP65 NEMA 12 NEMA 13 UL-508A	Gray	70 mm	2.756 "	83 mm	5.748 in	3.268 in	146 mm	Box	861.8 g	1.9 lbs	Cover Included	Mounting Flange Pushbutton Holes - 2	16 Gauge	Metal Steel	18.7 in²	121 cm²
Hoffman Enclosures, Inc. E2PBXSS	IP66 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL-508A	Natural	121 mm	4.764 in	102 mm	5.984 in	4.016 in	152 mm	Box	1.5 kg	3.3 lbs	Cover Included	Mounting Flange Pushbutton Holes - 2	14 Gauge				155 cm²	24 in²
Hoffman Enclosures, Inc. E2PBX	IP65 NEMA 12 NEMA 13 UL-508A	Gray	121 mm	4.764 in	102 mm	5.984 in	4.016 in	152 mm	Box	1.6 kg	3.6 lbs	Cover Included	Mounting Flange Pushbutton Holes - 2	14 Gauge	Metal Steel			155 cm²	24 in²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Steel Gray Cover Included 5.748" L x 3.268" W (146.00mm x 83.00mm) X 2.756" (70.00mm)
