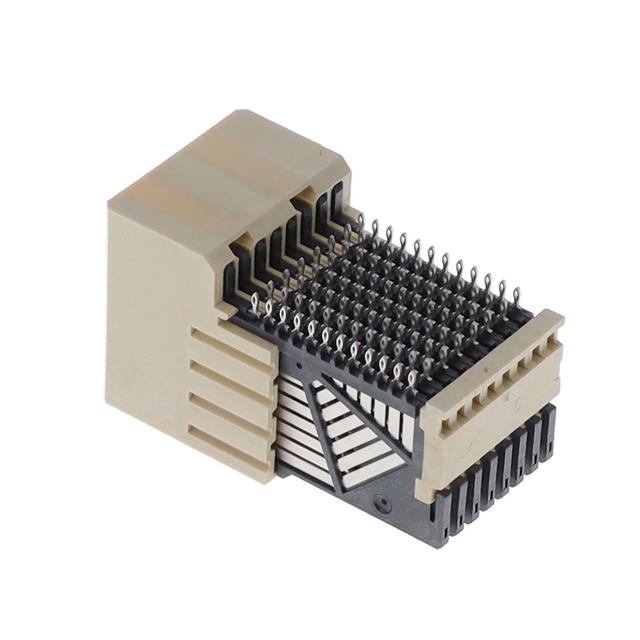

10052838-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED

Technical Specifications

Parameters and characteristics for this part

Specification	10052838-101LF

Color	Natural
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Contact Finish	Gold
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	8
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Connector Usage	Current Rating (Amps)	Number of Columns	Number of Rows	Pitch [x]	Pitch [x]	Termination	Number of Positions	Number of Positions Loaded	Color	Mounting Type	Connector Type
Amphenol ICC (FCI) 10052838-101LF	Gold	85 °C	-55 °C	UL94 V-0	Daughtercard	500 mA	8	12	0.079 in	2 mm	Press-Fit	96	All	Natural	Board Edge Right Angle Through Hole	Header Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

96 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural
