BD37034FV-ME2
ActiveGENERAL-PURPOSE ELECTRONIC VOLUME WITH BUILT-IN ADVANCED SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
BD37034FV-ME2
ActiveGENERAL-PURPOSE ELECTRONIC VOLUME WITH BUILT-IN ADVANCED SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BD37034FV-ME2 |
|---|---|
| Applications | Audio |
| Function | Audio Processor |
| Grade | Automotive |
| Interface | I2C |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 5 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

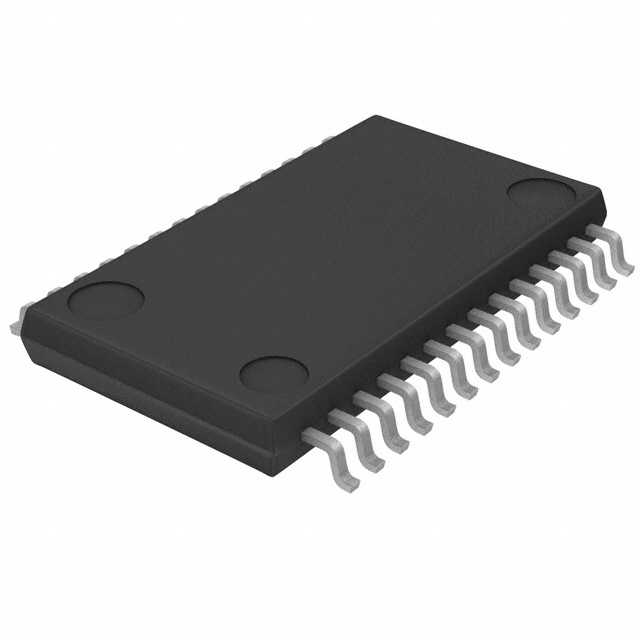

| Package / Case | 28-LSSOP |
| Package / Case [x] | 0.22 in |
| Package / Case [y] | 5.6 mm |
| Qualification | AEC-Q100 |
| Supplier Device Package | 28-SSOP-B |
| Voltage - Supply [Max] | 9.5 V |
| Voltage - Supply [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BD37034FV-M Series
BD37034FV-M is sound processors for car audio. The functions are stereo 5 input selector, volume, 3-band equalizer, loudness, 6ch fader, mixing, HPF for front and rear, LPF for subwoofer, anti-aliasing-filter, Hi-Voltage output, output level detector. Moreover, "Advanced switch circuit", that is ROHM original technology, can reduce various switching noise (ex. No-signal, low frequency likes 20Hz & large signal inputs). "Advanced switch" makes control of microcomputer easier, and can construct high quality car audio system.
