ZMM5236B-7

Obsolete

Vishay General Semiconductor - Diodes Division

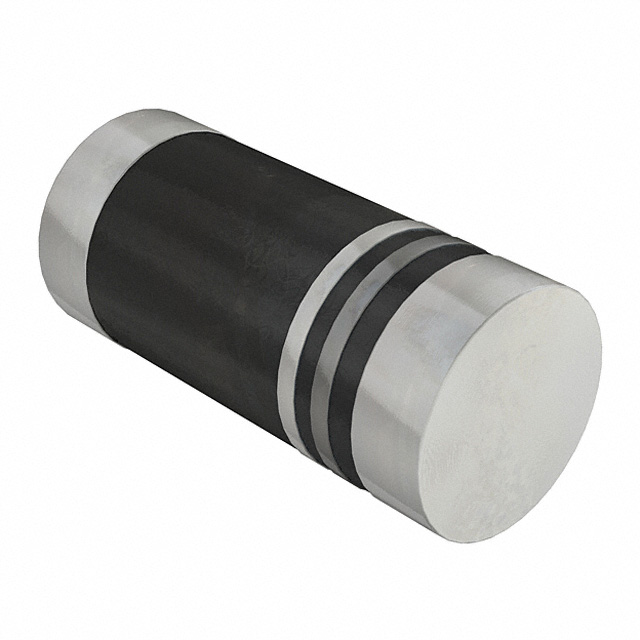

DIODE ZENER 7.5V 500MW DO213AA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ZMM5221B, ZMM5267B

ZMM5236B-7

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE ZENER 7.5V 500MW DO213AA

Deep-Dive with AI

DocumentsDatasheet ZMM5221B, ZMM5267B

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZMM5236B-7

Current - Reverse Leakage @ Vr	3 µA
Impedance (Max) (Zzt) [Max]	6 Ohms
Mounting Type	Surface Mount
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Package / Case	DO-213AA (Glass)
Power - Max [Max]	500 mW
Supplier Device Package	DO-213AA (GL34)
Tolerance	5 %
Voltage - Forward (Vf) (Max) @ If	1.5 V
Voltage - Zener (Nom) (Vz)	7.5 V

ZMM52 Series

Part	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Voltage - Zener (Nom) (Vz)	Power - Max [Max]	Mounting Type	Package / Case	Impedance (Max) (Zzt) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Current - Reverse Leakage @ Vr	Impedance (Max) (Zzt)
Vishay General Semiconductor - Diodes Division ZMM5256B-13	1.5 V	Mini MELF	30 V	500 mW	Surface Mount	DO-213AA	49 Ohms	175 ░C	-65 °C	5 %	100 nA
Vishay General Semiconductor - Diodes Division ZMM5252B-13	1.5 V	Mini MELF	24 V	500 mW	Surface Mount	DO-213AA	33 Ohms	175 ░C	-65 °C	5 %	100 nA
Vishay General Semiconductor - Diodes Division ZMM5235B-13	1.5 V	DO-213AA (GL34)	6.8 V	500 mW	Surface Mount	DO-213AA (Glass)	5 Ohms	347 °F	-65 ░C	5 %	3 µA
Vishay General Semiconductor - Diodes Division ZMM5236B-7	1.5 V	DO-213AA (GL34)	7.5 V	500 mW	Surface Mount	DO-213AA (Glass)	6 Ohms	347 °F	-65 ░C	5 %	3 µA
Vishay General Semiconductor - Diodes Division ZMM5226B-7	1.5 V	DO-213AA (GL34)	3.3 V	500 mW	Surface Mount	DO-213AA (Glass)	28 Ohms	347 °F	-65 ░C	5 %	25 µA
Vishay General Semiconductor - Diodes Division ZMM5222B-7	1.5 V	Mini MELF	2.5 V	500 mW	Surface Mount	DO-213AA	30 Ohms	175 ░C	-65 °C	5 %	100 µA
Vishay General Semiconductor - Diodes Division ZMM5226B-13	1.5 V	DO-213AA (GL34)	3.3 V	500 mW	Surface Mount	DO-213AA (Glass)	28 Ohms	347 °F	-65 ░C	5 %	25 µA
Vishay General Semiconductor - Diodes Division ZMM5225B-13	1.5 V	Mini MELF	3 V	500 mW	Surface Mount	DO-213AA	29 Ohms	175 ░C	-65 °C	5 %	50 ÁA
Vishay General Semiconductor - Diodes Division ZMM5239B-7	1.5 V	DO-213AA (GL34)	9.1 V	500 mW	Surface Mount	DO-213AA (Glass)		347 °F	-65 ░C	5 %	3 µA	10 Ohms
Vishay General Semiconductor - Diodes Division ZMM5237B-13	1.5 V	DO-213AA (GL34)	8.2 V	500 mW	Surface Mount	DO-213AA (Glass)		347 °F	-65 ░C	5 %	3 µA
