9352752.16.N

Active

JULABO

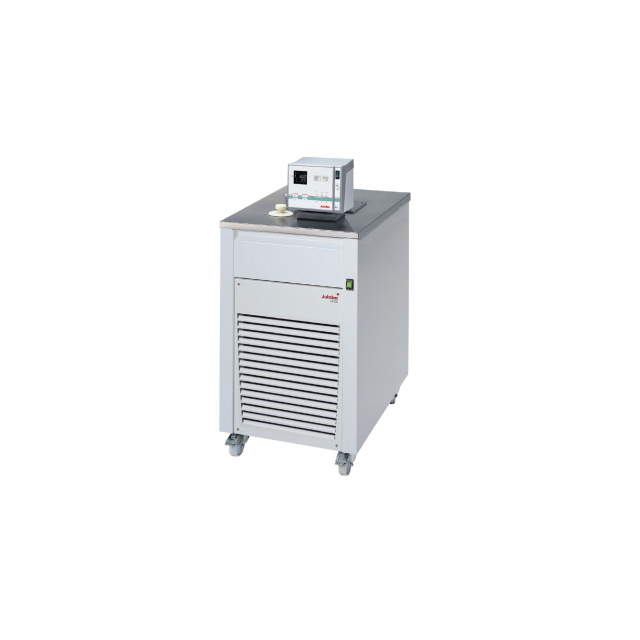

FP52-SL REFRIGERATED/HEATING CIR

Search across all available documentation for this part.

Active

JULABO

FP52-SL REFRIGERATED/HEATING CIR

Technical Specifications

Parameters and characteristics for this part

Specification	9352752.16.N

Current	24 A
Dimensions - Overall [x]	29.9 "
Dimensions - Overall [x]	759.5 mm
Dimensions - Overall [y]	23.2 in
Dimensions - Overall [y]	589.3 mm
Dimensions - Overall [z]	47.24 in
Dimensions - Overall [z]	1200 mm
Features	Temperature Control
Flow Rate	26 LPM, 22 LPM
Flow Rate [Max]	6.87 GPM
Flow Rate [Min]	5.81 GPM
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-60 °C
Power - Cooling	3000 W
Product Type	Active, Recirculating Chiller/Heater
Voltage	230 VAC
Weight	155.6 kg
Weight	343 lbs

Part	Dimensions - Overall [x]	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Flow Rate [Min]	Flow Rate	Flow Rate [Max]	Current	Power - Cooling	Product Type	Weight	Weight	Features
JULABO 9352752.16.N	29.9 "	23.2 in	47.24 in	589.3 mm	759.5 mm	1200 mm	100 °C	-60 °C	230 VAC	5.81 GPM	22 LPM 26 LPM	6.87 GPM	24 A	3000 W	Active Recirculating Chiller/Heater	155.6 kg	343 lbs	Temperature Control

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38799.00

General part information

Active, Recirculating Chiller/Heater 230VAC 3000 W 24 A 5.81GPM-6.87GPM (22.0LPM-26.0LPM)

Technical documentation and resources
