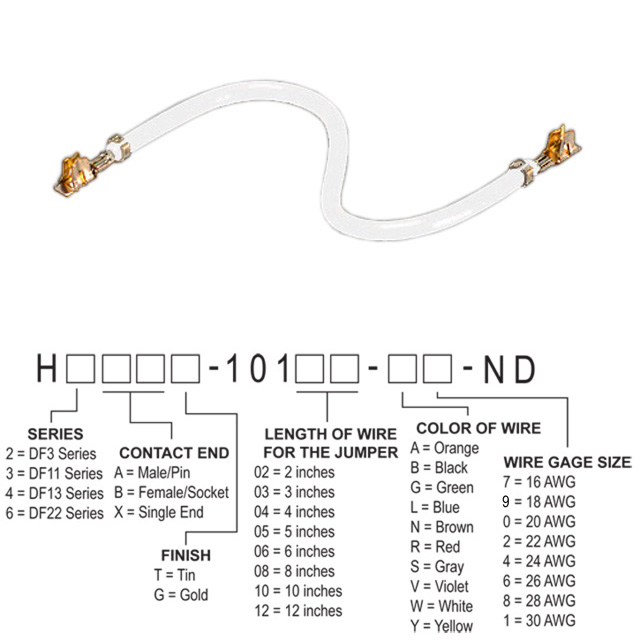

H4BBT-10104-W6
ActiveHirose Electric USA, Inc.
JUMPER-H9992TR/1853WH/H9992TR 4"
Deep-Dive with AI
Search across all available documentation for this part.
H4BBT-10104-W6
ActiveHirose Electric USA, Inc.
JUMPER-H9992TR/1853WH/H9992TR 4"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H4BBT-10104-W6 |
|---|---|
| Color | White |
| Contact End | Socket to Socket |
| Contact Finish | Tin |
| Length [x] | 101.6 mm |
| Length [x] | 4 " |
| Number of Conductors | 1 |
| Number of Rows | 1 |
| Wire Gauge | 26 AWG |
H4BBT Series
...
| Part | Contact End | Number of Rows | Color | Number of Conductors | Wire Gauge | Contact Finish | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Socket to Socket | 1 | Red | 1 | 28 AWG | Tin | 203.2 mm | 8 in | ||
Hirose Electric USA, Inc. | Socket to Socket | 1 | Slate | 1 | 28 AWG | Tin | 152.4 mm | 6 in | ||
Hirose Electric USA, Inc. | Socket to Socket | 1 | Blue | 1 | 26 AWG | Tin | 304.8 mm | 12 in | ||
Hirose Electric USA, Inc. | Socket to Socket | 1 | Yellow | 1 | 28 AWG | Tin | 203.2 mm | 8 in | ||
Hirose Electric USA, Inc. | Socket to Socket | 1 | Brown | 1 | 28 AWG | Tin | 4 " | 101.6 mm | ||
Hirose Electric USA, Inc. | Socket to Socket | 1 | Yellow | 1 | 26 AWG | Tin | 76.2 mm | 3 in | ||
Hirose Electric USA, Inc. | Socket to Socket | 1 | Blue | 1 | 26 AWG | Tin | 203.2 mm | 8 in | ||
Hirose Electric USA, Inc. | Socket to Socket | 1 | Red | 1 | 26 AWG | Tin | 254 mm | 10 in | ||
Hirose Electric USA, Inc. | Socket to Socket | 1 | Brown | 1 | 26 AWG | Tin | 5 in | 127 mm | ||
Hirose Electric USA, Inc. | Socket to Socket | 1 | White | 1 | 26 AWG | Tin | 4 " | 101.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 0.65 | |
| 30 | $ 0.57 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.50 | |||
| 250 | $ 0.45 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.39 | |||
| 2500 | $ 0.35 | |||
| 5000 | $ 0.33 | |||
Description
General part information
H4BBT Series
White 26 AWG Jumper Lead Socket to Socket Tin 4.00" (101.60mm)
