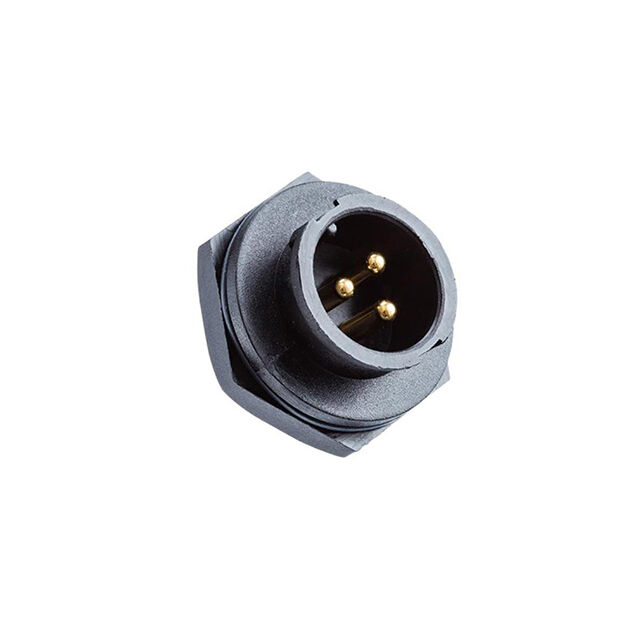

ACB-05RMMS-LC7001

Active

Amphenol LTW

MIDDLE STAMPING PIN

Search across all available documentation for this part.

Active

Amphenol LTW

MIDDLE STAMPING PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ACB-05RMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Shell Material	Primary Material	Voltage Rating	Color	Contact Material	Ingress Protection	Mounting Feature	Fastening Type	Orientation	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Insert Material	Material Flammability Rating	Connector Type	Contact Finish - Mating	Shell Size - Insert
Amphenol LTW ACB-05RMMS-LC7001	Glass Filled Nylon Polyamide (PA)	Plastic	250 VAC	Black	Copper Alloy	IP67 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	Bayonet Lock	Keyed	10 A	-40 °C	105 ░C	Unshielded	Polyamide (PA) Nylon Glass Filled	UL94 V-0	Male Pins Receptacle	Gold	C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 5.39

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
