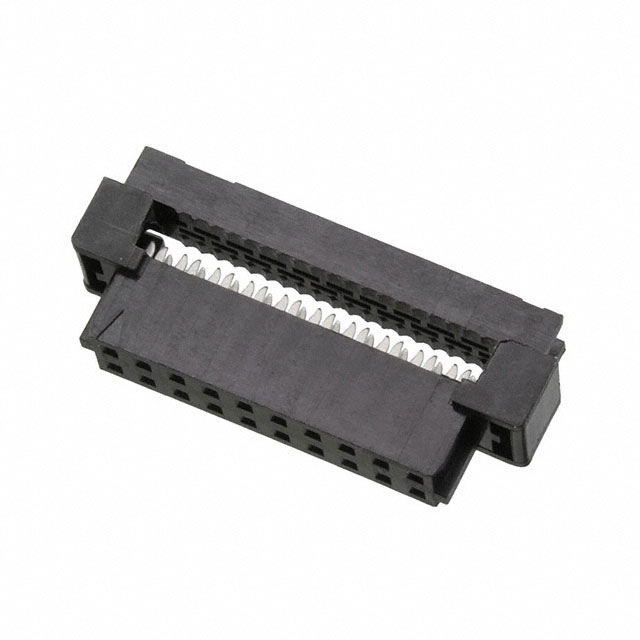

0875682063

Active

Molex

CONN RCPT 20POS IDC 28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0875682063

Active

Molex

CONN RCPT 20POS IDC 28AWG GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0875682063

Cable Termination	IDC
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Type	Female Socket
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable

87568 Series

Milli-Grid Cable-to-Board Receptacle, Dual Row, IDT, Lead-Free, 12 Circuits, 0.38µm Gold (Au) Selective Plating, without Center Polarization Key and Locking Friction Ramp

Part	Contact Finish	Row Spacing	Row Spacing	Features	Connector Type	Contact Type	Number of Positions	Pitch [x]	Pitch [x]	Wire Gauge	Number of Rows	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Wire Type	Color	Fastening Type	Number of Positions
Molex 0875683043	Gold	2 mm	0.079 in	Feed Through Polarizing Key	Receptacle	Female Socket	30	0.079 in	2 mm	28 AWG	2	IDC	15 µin	0.38 µm	Free Hanging (In-Line)	Ribbon Cable	Black
Molex 0875681263	Gold	2 mm	0.079 in	Feed Through	Receptacle	Female Socket	12	0.079 in	2 mm	28 AWG	2	IDC	15 µin	0.38 µm	Free Hanging (In-Line)	Ribbon Cable	Black
Molex 0875684463	Gold	2 mm	0.079 in	Feed Through	Receptacle	Female Socket	44	0.079 in	2 mm	28 AWG	2	IDC	15 µin	0.38 µm	Free Hanging (In-Line)	Ribbon Cable	Black
Molex 0875682063	Gold	2 mm	0.079 in	Feed Through	Receptacle	Female Socket	20	0.079 in	2 mm	28 AWG	2	IDC	15 µin	0.38 µm	Free Hanging (In-Line)	Ribbon Cable	Black
Molex 0875681463	Gold	2 mm	0.079 in	Feed Through	Receptacle	Female Socket	14	0.079 in	2 mm	28 AWG	2	IDC	15 µin	0.38 µm	Free Hanging (In-Line)	Ribbon Cable	Black
Molex 0875681694	Gold	2 mm	0.079 in	Feed Through Polarizing Key	Receptacle	Female Socket		0.079 in	2 mm	28 AWG	2	IDC	30 Áin	0.76 Ám	Free Hanging (In-Line)	Ribbon Cable	Black	Locking Ramp	16
Molex 0875682663	Gold	2 mm	0.079 in	Feed Through	Receptacle	Female Socket	26	0.079 in	2 mm	28 AWG	2	IDC	15 µin	0.38 µm	Free Hanging (In-Line)	Ribbon Cable	Black
Molex 0875681063	Gold	2 mm	0.079 in	Feed Through	Receptacle	Female Socket	10	0.079 in	2 mm	28 AWG	2	IDC	15 µin	0.38 µm	Free Hanging (In-Line)	Ribbon Cable	Black
Molex 0875682463	Gold	2 mm	0.079 in	Feed Through	Receptacle	Female Socket	24	0.079 in	2 mm	28 AWG	2	IDC	15 µin	0.38 µm	Free Hanging (In-Line)	Ribbon Cable	Black
Molex 0875685063	Gold	2 mm	0.079 in	Feed Through	Receptacle	Female Socket	50	0.079 in	2 mm	28 AWG	2	IDC	15 µin	0.38 µm	Free Hanging (In-Line)	Ribbon Cable	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.78
		10	$ 2.13
		25	$ 1.93
		40	$ 1.85
		80	$ 1.82

Description

General part information

87568 Series

Milli-Grid Cable-to-Board Receptacle, Dual Row, IDT, Lead-Free, 12 Circuits, 0.38µm Gold (Au) Selective Plating, without Center Polarization Key and Locking Friction Ramp
