DC-ANT-E-24DP

Active

Digi

CBL ASSY RPSMA JACK-PLUG 11.811"

Search across all available documentation for this part.

Active

Digi

CBL ASSY RPSMA JACK-PLUG 11.811"

Technical Specifications

Parameters and characteristics for this part

Specification	DC-ANT-E-24DP

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Color	Copper
Length [x]	300 mm
Length [x]	11.811 in
Style	RP-SMA to RP-SMA

Part	Style	1st Connector Mounting Feature	Length [x]	Length [x]	1st Connector Mounting Type	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Type	1st Connector	Color
Digi DC-ANT-E-24DP	RP-SMA to RP-SMA	Bulkhead - Front Side Nut	300 mm	11.811 in	Panel Mount	Female	Male	Free Hanging (In-Line)	RP-SMA Jack	Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.36

General part information

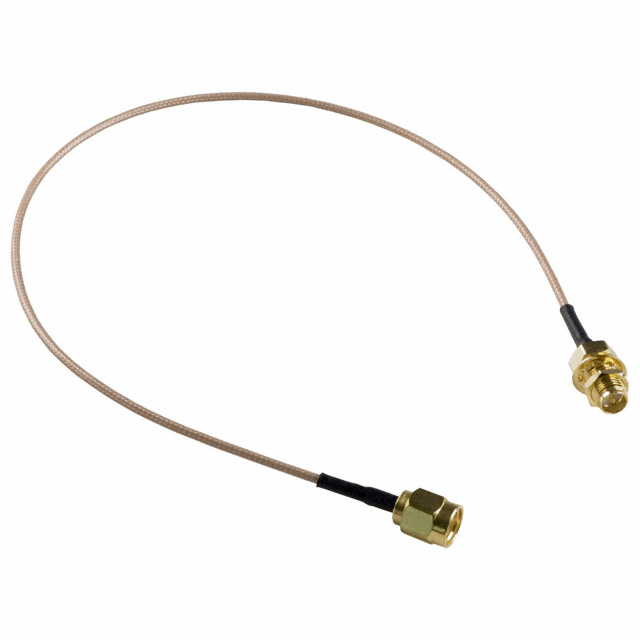

Cable Assembly Coaxial RP-SMA to RP-SMA 11.811" (300.00mm)

Technical documentation and resources
