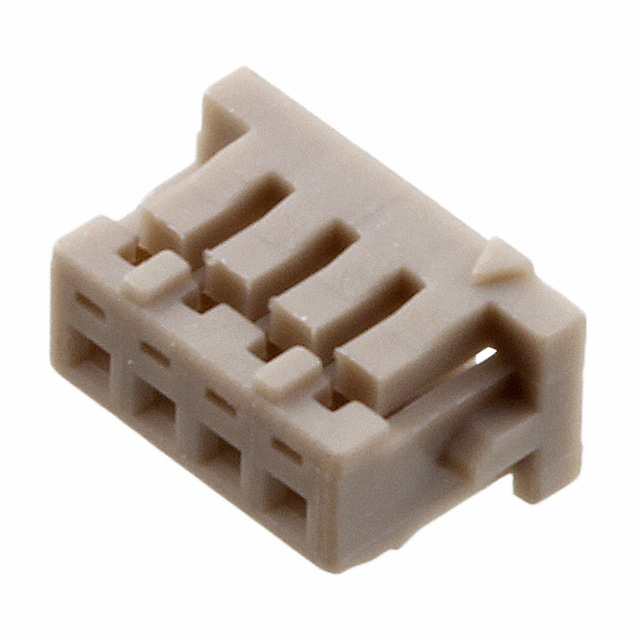

M30-1100400

Active

Harwin Inc.

WIRE-TO-BOARD CONNECTOR, M30-1 SERIES, CRIMP, RECEPTACLE, 4, 1.25 MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

WIRE-TO-BOARD CONNECTOR, M30-1 SERIES, CRIMP, RECEPTACLE, 4, 1.25 MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Color	Pitch [x]	Pitch [x]	Note	Contact Type	Mounting Type	Number of Positions	Connector Type
Harwin Inc. M30-1100800	1	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Crimp	Natural	0.049 in	1.25 mm	Contacts Not Included	Female Socket	Free Hanging (In-Line)	8	Receptacle
Harwin Inc. M30-1100700	1	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Crimp	Natural	0.049 in	1.25 mm	Contacts Not Included	Female Socket	Free Hanging (In-Line)	7	Receptacle
Harwin Inc. M30-1100400	1	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Crimp	Natural	0.049 in	1.25 mm	Contacts Not Included	Female Socket	Free Hanging (In-Line)	4	Receptacle
Harwin Inc. M30-1100300	1	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Crimp	Natural	0.049 in	1.25 mm	Contacts Not Included	Female Socket	Free Hanging (In-Line)		Receptacle
Harwin Inc. M30-1101200	1	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Crimp	Natural	0.049 in	1.25 mm	Contacts Not Included	Female Socket	Free Hanging (In-Line)	12	Receptacle
Harwin Inc. M30-1100900	1	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Crimp	Natural	0.049 in	1.25 mm	Contacts Not Included	Female Socket	Free Hanging (In-Line)	9	Receptacle
Harwin Inc. M30-1100500	1	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Crimp	Natural	0.049 in	1.25 mm	Contacts Not Included	Female Socket	Free Hanging (In-Line)		Receptacle
Harwin Inc. M30-1100200	1	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Crimp	Natural	0.049 in	1.25 mm	Contacts Not Included	Female Socket	Free Hanging (In-Line)	2	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Natural 0.049" (1.25mm)
