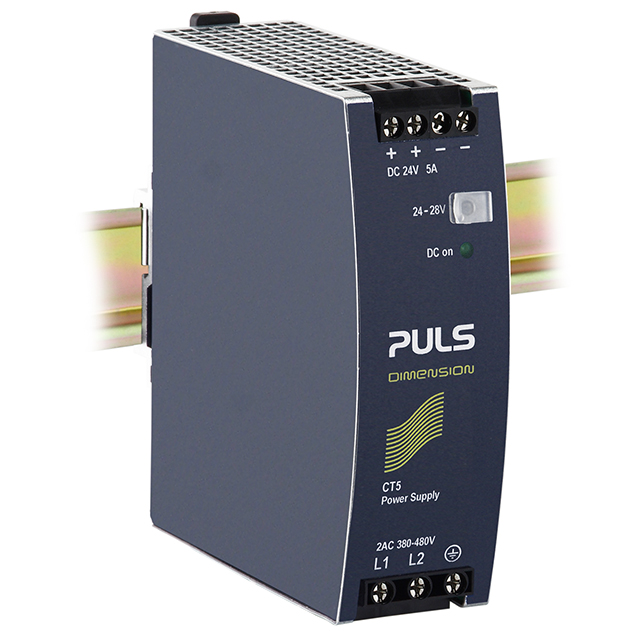

CT5.241

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 120W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	CT5.241

AC Voltage - Input [Max]	576 VAC
AC Voltage - Input [Min]	323 VAC
Applications	ITE (Commercial)
Approval Agency	SEMI, DNV GL, CSA, EAC, UL, ABS, IEC
Current - Output (Max) [Max]	5 A
Efficiency	90.4 %
Features	Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	117 mm
Size / Dimension [x]	4.61 "
Size / Dimension [y]	1.57 "
Size / Dimension [y]	40 mm
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Standard Number	61010-2-201, Class I Div 2, 508, F47, 60950-1
Voltage - Isolation	500 V
Voltage - Output 1	24 V

Part	Features	Standard Number	Voltage - Isolation	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Applications	Approval Agency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Input Type	Current - Output (Max) [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]
PULS, LP CT5.241	Adjustable Output Load Sharing	508 60950-1 61010-2-201 Class I Div 2 F47	500 V	576 VAC	323 VAC	ITE (Commercial)	ABS CSA DNV GL EAC IEC SEMI UL	24 V	1.57 "	124 mm	117 mm	4.61 "	4.88 "	40 mm	1	AC	5 A	90.4 %	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 328.50

General part information

AC/DC DIN RAIL SUPPLY 24V 120W
