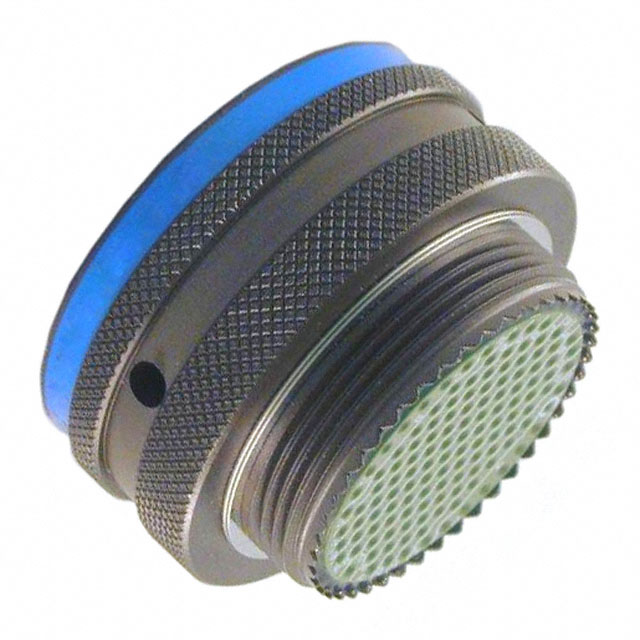

MS27467T25B35P

Active

Souriau-Sunbank by Eaton

CONN PLUG MALE 128POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

MS27467T25B35P

Active

Souriau-Sunbank by Eaton

CONN PLUG MALE 128POS GOLD CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS27467T25B35P

Applications	Communication Systems, Military, Medical, Aviation, Marine
Color	Olive Green
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	128
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Finish	Olive Green Cadmium
Shell Material	Aluminum Alloy
Shell Size, MIL	J
Shielding	Shielded
Termination	Crimp

MS27467T25B Series

Part	Color	Ingress Protection	Features	Shell Finish	Termination	Insert Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Primary Material	Fastening Type	Current Rating (Amps)	Contact Finish - Mating	Mounting Type	Applications	Grade	Connector Type	Qualification	Shell Size, MIL	Shell Material	Shielding	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Note	Housing Color	Type	Contact Size	Contact Size	Contact Type	Contact Shape	Contact Size [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Size	Shell Size - Insert	Number of Positions	Material Flammability Rating
Souriau-Sunbank by Eaton MS27467T25B35P	Olive Green	Environment Resistant	Coupling Nut	Olive Green Cadmium	Crimp	Thermoplastic	Copper Alloy	1.27 µm	50 µin	N	Metal	Bayonet Lock	5 A	Gold	Free Hanging (In-Line)	Aviation Communication Systems Marine Medical Military	Military	Male Pins Plug	MIL-DTL-38999 Series I	J	Aluminum Alloy	Shielded	128	-65 ░C	347 °F
Souriau-Sunbank by Eaton MS27467T25B35SC	Olive Drab	Environment Resistant	Coupling Nut	Olive Drab Cadmium	Crimp	Thermoplastic	Copper Alloy	1.27 µm	50 µin	C	Metal	Bayonet Lock	5 A	Gold	Free Hanging (In-Line)	Aviation Communication Systems Marine Medical Military	Military	Female Sockets Plug	MIL-DTL-38999 Series I		Aluminum Alloy	Shielded	128	-65 ░C	347 °F
Souriau-Sunbank by Eaton MS27467T25B43PC	Olive Green	Environment Resistant	Coupling Nut	Olive Green Cadmium	Crimp	Thermoplastic	Copper Alloy	1.27 µm	50 µin	C	Metal	Bayonet Lock	7.5 A 13 A	Gold	Free Hanging (In-Line)	Aviation Communication Systems Marine Medical Military	Military	Male Pins Plug	MIL-DTL-38999 Series I	J	Aluminum Alloy	Shielded	43	-65 ░C	347 °F	25	43
Souriau-Sunbank by Eaton MS27467T25B43P-LC		Environment Resistant	Coupling Nut	Cadmium		Thermoplastic				N		Bayonet Lock			Free Hanging (In-Line)		Military	Plug Housing	MIL-DTL-38999 Series I	J	Aluminum Alloy	Shielded	43	-65 ░C	347 °F	25	43	Contacts Not Included	Olive	For Male Pins	20 23	16 20	Crimp	Circular
Souriau-Sunbank by Eaton MS27467T25B46S-LC		Environment Resistant	Coupling Nut	Cadmium		Thermoplastic				N		Bayonet Lock			Free Hanging (In-Line)		Military	Plug Housing	MIL-DTL-38999 Series I	J	Aluminum Alloy	Shielded		-65 ░C	347 °F	25	46	Contacts Not Included	Olive	For Female Sockets		16 20	Crimp	Circular	8	44	2
Souriau-Sunbank by Eaton MS27467T25B7P-LC		Environment Resistant	Coupling Nut	Cadmium		Thermoplastic				N		Bayonet Lock			Free Hanging (In-Line)		Military	Plug Housing	MIL-DTL-38999 Series I	J	Aluminum Alloy	Shielded		-65 ░C	347 °F			Contacts Not Included	Olive	For Male Pins			Crimp	Circular				22D (97) 8 Triax (2)	25-7	99
Souriau-Sunbank by Eaton MS27467T25B7P	Olive Green	Environment Resistant	Coupling Nut	Olive Green Cadmium	Crimp	Thermoplastic	Copper Alloy	1.27 µm	50 µin	N	Metal	Bayonet Lock	5 A 45 A	Gold	Free Hanging (In-Line)	Aviation Communication Systems Marine Medical Military	Military	Male Pins Plug	MIL-DTL-38999 Series I	J	Aluminum Alloy	Shielded		-65 ░C	347 °F														25-7	99
Souriau-Sunbank by Eaton MS27467T25B43S-LC		Environment Resistant	Coupling Nut	Cadmium		Thermoplastic				N		Bayonet Lock			Free Hanging (In-Line)		Military	Plug Housing	MIL-DTL-38999 Series I	J	Aluminum Alloy	Shielded	43	-65 ░C	347 °F	25	43	Contacts Not Included	Olive	For Female Sockets	20 23	16 20	Crimp	Circular
Souriau-Sunbank by Eaton MS27467T25B24SAL		IP67	Coupling Nut	Cadmium		Thermoplastic				A	Metal	Bayonet Lock			Free Hanging (In-Line)		Military	Plug Housing	MIL-DTL-38999 Series I		Aluminum Alloy	Shielded	24	-65 ░C	347 °F	25	24	Contacts Not Included	Olive Drab	For Female Sockets		12 16	Crimp	Circular							UL94 V-0
Souriau-Sunbank by Eaton MS27467T25B4S	Olive Drab	Environment Resistant	Coupling Nut	Olive Drab Cadmium	Crimp	Thermoplastic	Copper Alloy	1.27 µm	50 µin	N	Metal	Bayonet Lock	7.5 A 13 A	Gold	Free Hanging (In-Line)	Aviation Communication Systems Marine Medical Military	Military	Female Sockets Plug	MIL-DTL-38999 Series I		Aluminum Alloy	Shielded	56	-65 ░C	347 °F	25	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 158.04
		10	$ 136.97
		25	$ 120.86
		50	$ 108.13
		100	$ 94.83
	Bulk	1	$ 128.86
		10	$ 110.00
		25	$ 95.96
		50	$ 85.09
		100	$ 79.12

Description

General part information

MS27467T25B Series

128 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

No documents available
