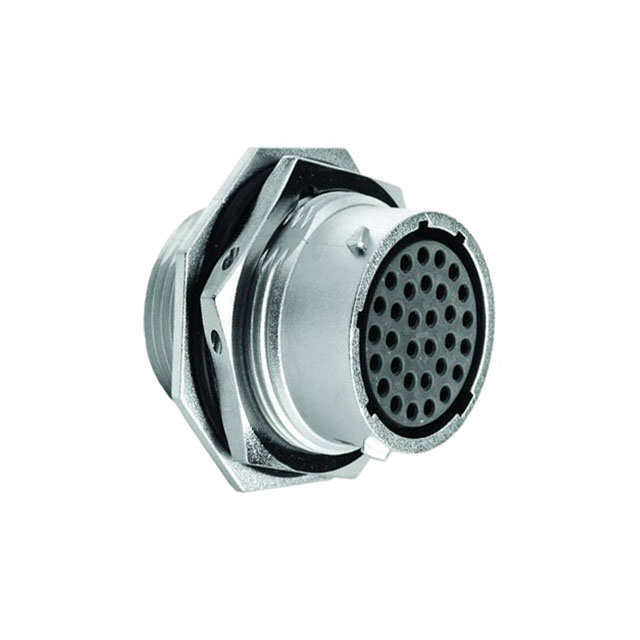

RT0W71832SNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 32POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet

RT0W71832SNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 32POS PNL MT

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT0W71832SNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	32
Shell Size - Insert [Min]	18
Shielding	Shielded
Type	For Female Sockets

RT0W71832 Series

Part	Housing Color	Shell Finish	Contact Shape	Ingress Protection	Note	Material Flammability Rating	Contact Size	Type	Mounting Feature	Shell Material	Connector Type	Insert Material	Orientation	Shielding	Fastening Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Features	Includes	Termination	Color	Primary Material	Voltage Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish - Mating
Amphenol Sine Systems Corp RT0W71832SNH	Silver	Nickel	Circular	IP67 - Dust Tight Waterproof	Contacts Not Included	UL94 V-0	20	For Female Sockets	Bulkhead - Front Side Nut	Zinc Alloy	Receptacle Housing	Thermoplastic	N	Shielded	Bayonet Lock	32	18	-40 °C	105 ░C	Crimp
Amphenol Sine Systems Corp RT0W71832PNHEC	Silver	Nickel	Circular	IP67 - Dust Tight Waterproof	Contacts Not Included	UL94 V-0	20	For Male Pins	Bulkhead - Front Side Nut	Zinc Alloy	Receptacle Housing	Thermoplastic	N	Shielded	Bayonet Lock	32	18	-40 °C	105 ░C	Crimp	Backshell	1 Connector 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RT0W71832PNH03	Silver	Nickel	Circular	IP67 - Dust Tight Waterproof	Contacts Not Included	UL94 V-0	20	For Male Pins	Bulkhead - Front Side Nut	Zinc Alloy	Receptacle Housing	Thermoplastic	N	Shielded	Bayonet Lock	32	18	-40 °C	125 °C	Crimp		1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RT0W71832PNHEC03
Amphenol Sine Systems Corp RT0W71832SNH-K		Nickel		IP67 - Dust Tight Waterproof					Bulkhead - Front Side Nut	Zinc Die Cast	Receptacle Female Sockets		N		Bayonet Lock	32	18	-40 °C	105 ░C				Crimp	Silver	Metal	150 VAC	7.5 A	Flash	Gold
Amphenol Sine Systems Corp RT0W71832SNH03	Silver	Nickel	Circular	IP67 - Dust Tight Waterproof	Contacts Not Included	UL94 V-0	20	For Female Sockets	Bulkhead - Front Side Nut	Zinc Alloy	Receptacle Housing	Thermoplastic	N	Shielded	Bayonet Lock	32	18	-40 °C	125 °C	Crimp		1 Connector 1 Gasket 1 Nut 1 O-Ring

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 18.44

Description

General part information

RT0W71832 Series

32 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet
