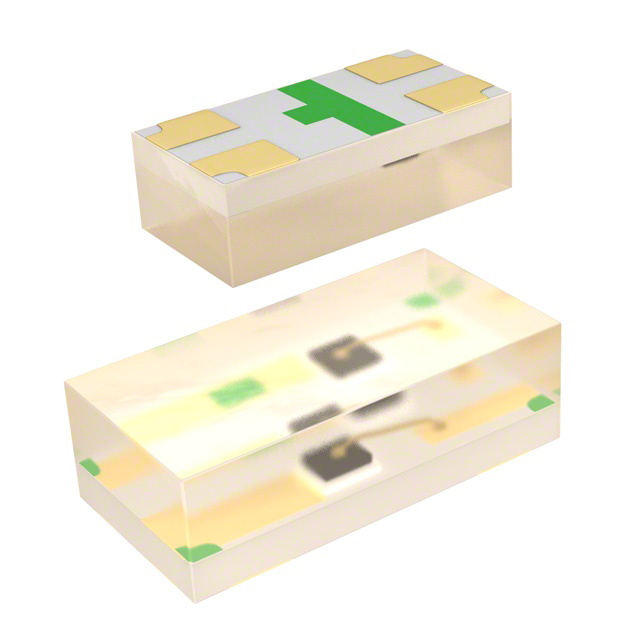

APHB1608LVBDZGKC

Active

Kingbright

LED BLUE/GREEN CLEAR 4SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APHB1608LVBDZGKC

Active

Kingbright

LED BLUE/GREEN CLEAR 4SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APHB1608LVBDZGKC

Color	Green, Blue
Configuration	Independent
Current - Test [custom]	2 mA
Current - Test [custom]	2 mA
Height (Max) [Max] [z]	0.65 mm
Lens Color	Colorless
Lens Size [x]	1.6 mm
Lens Size [y]	0.8 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	15 mcd, 40 mcd
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Supplier Device Package	4-SMD
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	2.7 V
Wavelength - Dominant	525 nm, 470 nm
Wavelength - Peak	515 nm, 465 nm

APHB1608 Series

Part	Wavelength - Dominant	Supplier Device Package	Configuration	Viewing Angle	Mounting Type	Lens Style	Lens Size [y]	Lens Size [x]	Color	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max] [z]	Lens Color	Current - Test [custom]	Current - Test [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Millicandela Rating	Package / Case	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Current - Test	Wavelength - Peak	Current - Test [custom]	Voltage - Forward (Vf) (Typ)	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Millicandela Rating	Current - Test
Kingbright APHB1608LQBDSURKC	465 nm 630 nm	4-SMD	Independent	130 °	Surface Mount	Rectangle with Flat Top	0.8 mm	1.6 mm	Blue Red	Clear	1.6 mm	0.8 mm	0.65 mm	Colorless	2 mA	2 mA	1.8 V	2.7 V	460 nm	645 nm	8 mcd 12 mcd	0603 (1608 Metric)
Kingbright APHB1608LZGKSYKC	525 nm 590 nm	4-SMD	Independent	130 °	Surface Mount	Rectangle with Flat Top	0.8 mm	1.6 mm	Green Yellow	Clear	1.6 mm	0.8 mm	0.65 mm	Colorless							10 mcd 40 mcd	0603 (1608 Metric)	590 nm	515 nm	2 mA 2 mA
Kingbright APHB1608LVBDZGKC	470 nm 525 nm	4-SMD	Independent	130 °	Surface Mount	Rectangle with Flat Top	0.8 mm	1.6 mm	Blue Green	Clear	1.6 mm	0.8 mm	0.65 mm	Colorless	2 mA						15 mcd 40 mcd	0603 (1608 Metric)				465 nm 515 nm	2 mA	2.7 V
Kingbright APHB1608QBDCGKC		4-SMD	Independent	130 °	Surface Mount	Rectangle with Flat Top	0.8 mm	1.6 mm	Blue Green	Clear	1.6 mm	0.8 mm	0.65 mm	Colorless	20 mA			3.3 V	460 nm			0603 (1608 Metric)		574 nm			20 mA		50 mcd	70 mcd	2.1 V	465 nm 570 nm
Kingbright APHB1608ZGKSURKC		4-SMD	Independent	130 °	Surface Mount	Rectangle with Flat Top	0.8 mm	1.6 mm	Green Red	Clear	1.6 mm	0.8 mm	0.65 mm	Colorless			1.95 V				250 mcd 350 mcd	0603 (1608 Metric)			20 mA 20 mA	515 nm 645 nm					3.3 V		525 nm	630 nm
Kingbright APHB1608CGKSEKC	570 nm 601 nm	4-SMD	Independent	130 °	Surface Mount	Rectangle with Flat Top	0.8 mm	1.6 mm	Green Orange	Clear	1.6 mm	0.8 mm	0.65 mm	Colorless								0603 (1608 Metric)			20 mA 20 mA	574 nm 610 nm		2.1 V 2.1 V							250mcd Orange 50mcd Green
Kingbright APHB1608LCGKSYKC	570 nm 590 nm	4-SMD	Independent	130 °	Surface Mount	Rectangle with Flat Top	0.8 mm	1.6 mm	Green Yellow	Clear	1.6 mm	0.8 mm	0.65 mm	Colorless							3 mcd 10 mcd	0603 (1608 Metric)			2 mA 2 mA	574 nm 590 nm		1.9 V 1.9 V
Kingbright APHB1608ZGSYKC	525 nm 590 nm	4-SMD	Independent	130 °	Surface Mount	Rectangle with Flat Top	0.8 mm	1.6 mm	Green Yellow	Clear	1.6 mm	0.8 mm	0.65 mm	Colorless							150 mcd 350 mcd	0603 (1608 Metric)	590 nm	515 nm	20 mA 20 mA			2 V 3.3 V
Kingbright APHB1608SYKSURKC	590 nm 630 nm	4-SMD	Independent	130 °	Surface Mount	Rectangle with Flat Top	0.8 mm	1.6 mm	Red Yellow	Clear	1.6 mm	0.8 mm	0.65 mm	Colorless						645 nm	90 mcd 150 mcd	0603 (1608 Metric)	590 nm					1.95 V 2 V								20mA Red 20mA Yellow
Kingbright APHB1608ZGKSYKC	525 nm 590 nm	4-SMD	Independent	130 °	Surface Mount	Rectangle with Flat Top	0.8 mm	1.6 mm	Green Yellow	Clear	1.6 mm	0.8 mm	0.65 mm	Colorless							150 mcd 350 mcd	0603 (1608 Metric)	590 nm	515 nm	20 mA 20 mA			2 V 3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.72
		10	$ 0.47
		100	$ 0.31
		1000	$ 0.24
	Digi-Reel®	1	$ 0.72
		10	$ 0.47
		100	$ 0.31
		1000	$ 0.24
	Tape & Reel (TR)	2000	$ 0.20

Description

General part information

APHB1608 Series

Blue, Green 470nm Blue, 525nm Green LED Indication - Discrete 2.7V Blue, 2.7V Green 0603 (1608 Metric)
