AS5270A-HMFM

Active

ams-OSRAM USA INC.

SENSOR ANGLE 90DEG SURFACE MOUNT

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

SENSOR ANGLE 90DEG SURFACE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	AS5270A-HMFM

Actuator Type	External Magnet, Not Included
For Measuring	Angle
Mounting Type	Surface Mount
Output	Analog Voltage
Output Signal	Clockwise Increase

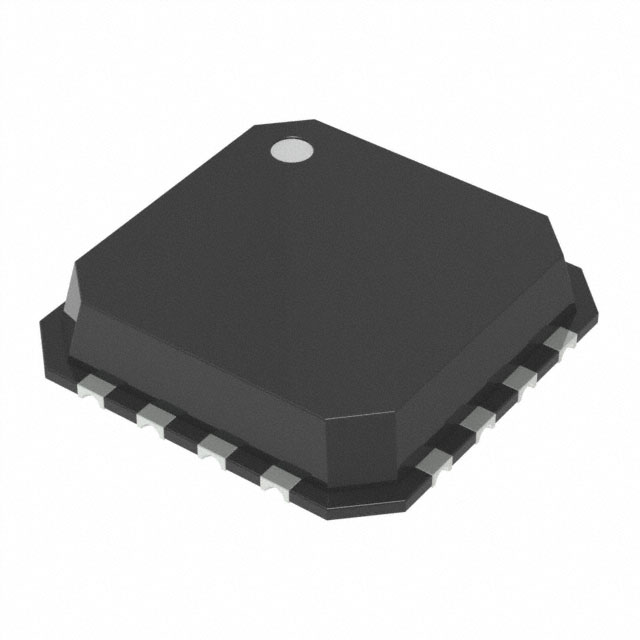

Package / Case	16-VQFN Exposed Pad
Rotation Angle - Electrical, Mechanical	90 °
Supplier Device Package	16-MLF (6x6)
Technology	Hall Effect
Termination Style	SMD (SMT) Tab
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Actuator Type	Technology	Supplier Device Package	Output	For Measuring	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Termination Style	Output Signal	Package / Case	Rotation Angle - Electrical, Mechanical	Module/Board Type	For Use With/Related Products
ams-OSRAM USA INC. AS5270A-HMFM	External Magnet Not Included	Hall Effect	16-MLF (6x6)	Analog Voltage	Angle	4.5 V	5.5 V	Surface Mount	SMD (SMT) Tab	Clockwise Increase	16-VQFN Exposed Pad	90 °
ams-OSRAM USA INC. SOCKETBOARD AS5270-MF_EK_SB													ZIF Socket	AS5270A AS5270B AS5xxx-EK-USB-PB Board
ams-OSRAM USA INC. AS5270A-HMFT	External Magnet Not Included	Hall Effect	16-MLF (6x6)	Analog Voltage	Angle	4.5 V	5.5 V	Surface Mount	SMD (SMT) Tab	Clockwise Increase	16-VQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab
