896-008-541-103
ActiveEDAC Inc.

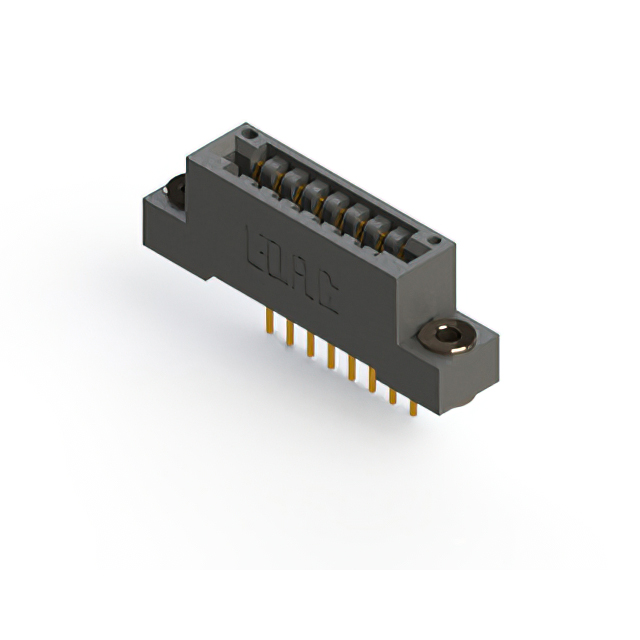

CARD EDGE CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, 0.125 INCH PITCH, WIRE WRAP TERMINAL, HOLE .116, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-008-541-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, 0.125 INCH PITCH, WIRE WRAP TERMINAL, HOLE .116, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-008-541-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
896-008 Series
...
| Part | Material - Insulation | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Gender | Flange Feature | Mounting Type | Card Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Material | Number of Rows | Termination Rows | Termination | Contact Finish | Read Out | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyphenylene Sulfide (PPS) | Black | 125 °C | -40 °C | 8 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole Right Angle | Non Specified - Single Edge | 8 | 8 | 8 | Copper Alloy | 1 | 1 | Solder | Gold | Single | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | ||
EDAC Inc. | Polyphenylene Sulfide (PPS) | Black | 125 °C | -40 °C | 8 | Female | Through Hole | Non Specified - Single Edge | 8 | 8 | 8 | Copper Alloy | 1 | 1 | Wire Wrap | Gold | Single | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | |||
EDAC Inc. | Polyphenylene Sulfide (PPS) | Black | 125 °C | -40 °C | 8 | Female | Flush Mount Top Opening Unthreaded | Through Hole | Non Specified - Single Edge | 8 | 8 | 8 | Copper Alloy | 1 | 1 | Solder | Gold | Single | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 3.96 mm | 0.156 in |
EDAC Inc. | Polyphenylene Sulfide (PPS) | Black | 125 °C | -40 °C | 8 | Female | 4-40 Threaded Insert Top Mount Opening | Through Hole | Non Specified - Single Edge | 8 | 8 | 8 | Copper Alloy | 1 | 1 | Solder | Gold | Single | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | ||
EDAC Inc. | Polyphenylene Sulfide (PPS) | Black | 125 °C | -40 °C | 8 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole Right Angle | Non Specified - Single Edge | 8 | 8 | 8 | Copper Alloy | 1 | 1 | Solder | Gold | Single | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | ||
EDAC Inc. | Polyphenylene Sulfide (PPS) | Black | 125 °C | -40 °C | 8 | Female | Top Mount Opening Unthreaded | Through Hole | Non Specified - Single Edge | 8 | 8 | 8 | Copper Alloy | 1 | 1 | Wire Wrap | Gold | Single | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 3.96 mm | 0.156 in |
EDAC Inc. | Polyphenylene Sulfide (PPS) | Black | 125 °C | -40 °C | 8 | Female | M3 Threaded Insert Top Mount Opening | Through Hole Right Angle | Non Specified - Single Edge | 8 | 8 | 8 | Copper Alloy | 1 | 1 | Solder | Gold | Single | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | ||
EDAC Inc. | Polyphenylene Sulfide (PPS) | Black | 125 °C | -40 °C | 8 | Female | Flush Mount Top Opening Unthreaded | Through Hole Right Angle | Non Specified - Single Edge | 8 | 8 | 8 | Copper Alloy | 1 | 1 | Solder | Gold | Single | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 3.25 mm | 0.128 " |
EDAC Inc. | Polyphenylene Sulfide (PPS) | Black | 125 °C | -40 °C | 8 | Female | Through Hole | Non Specified - Single Edge | 8 | 8 | 8 | Copper Alloy | 1 | 1 | Solder | Gold | Single | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | |||
EDAC Inc. | Polyphenylene Sulfide (PPS) | Black | 125 °C | -40 °C | 8 | Female | Floating Bobbin Flush Mount | Through Hole | Non Specified - Single Edge | 8 | 8 | 8 | Copper Alloy | 1 | 1 | Wire Wrap | Gold | Single | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 2.95 mm | 0.116 in |
