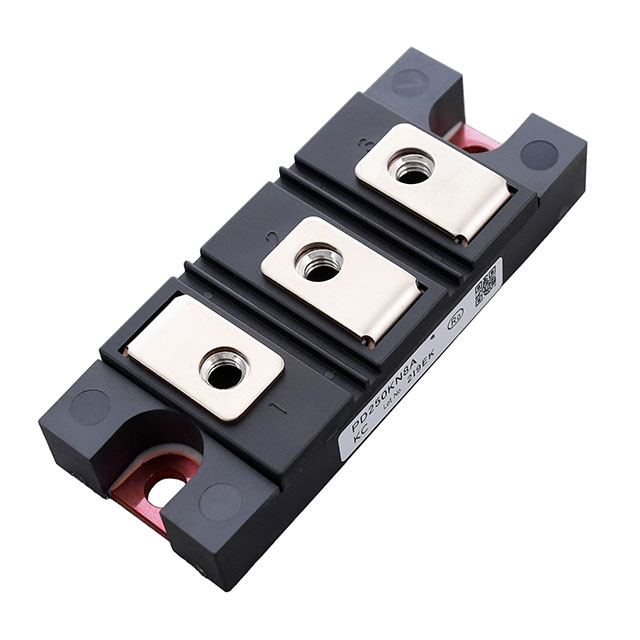

PD250KN8A

Active

Kyocera AVX

DIODE MODULE GP 800V 250A

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE MODULE GP 800V 250A

Technical Specifications

Parameters and characteristics for this part

Specification	PD250KN8A

Current - Average Rectified (Io) (per Diode)	250 A
Current - Reverse Leakage @ Vr	17 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	800 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.57 V

Part	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]	Supplier Device Package	Speed	Speed	Current - Reverse Leakage @ Vr	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]
Kyocera AVX PD250KN16A	Standard	150 °C	-40 °C	Module	1.72 V	Module	Standard Recovery >500ns	200 mA	17 mA	1 Pair Series Connection	250 A	Chassis Mount
Kyocera AVX PD250KN8A	Standard	150 °C	-40 °C	Module	1.57 V	Module	Standard Recovery >500ns	200 mA	17 mA	1 Pair Series Connection	250 A	Chassis Mount	800 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 125.00

General part information

Diode Array 1 Pair Series Connection 800 V 250A Chassis Mount Module
