ALC80A471DG450

Active

KEMET

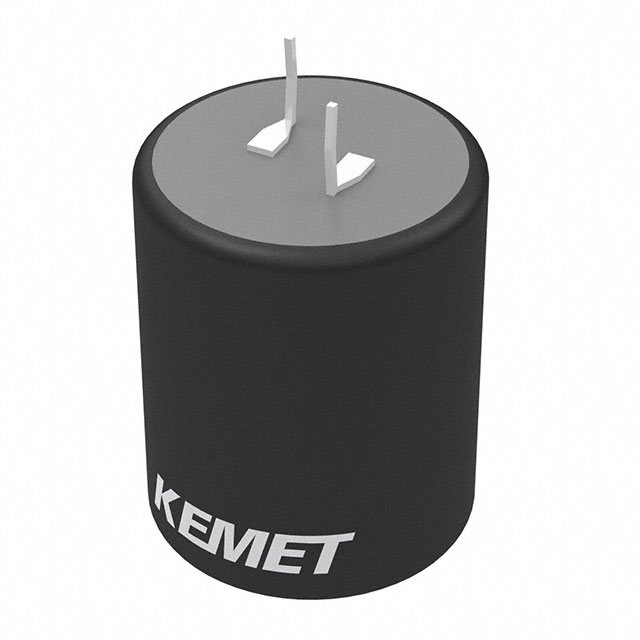

CAP ALUM 470UF 20% 450V SNAP TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ALC80A471DG450 Spec +1

ALC80A471DG450

Active

KEMET

CAP ALUM 470UF 20% 450V SNAP TH

Deep-Dive with AI

DocumentsDatasheet ALC80A471DG450 Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALC80A471DG450

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	278 mOhm
Height - Seated (Max) [Max] [z]	57 mm
Height - Seated (Max) [Max] [z]	2.244 "
Impedance	160 mOhms
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	8000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	7.62 A
Ripple Current @ Low Frequency	2.82 A
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance	20 %
Voltage - Rated	450 V

ALC80A Series

Part	Lifetime @ Temp.	Mounting Type	Applications	Polarization	Ripple Current @ High Frequency	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Impedance	Lead Spacing	Lead Spacing	Capacitance	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALC80A333EH040	9000 Hrs	Through Hole	General Purpose	Polar	13.02 A	Radial Can - Snap-In	1.575 "	40 mm	20 %	18 mOhms	0.394 in	10 mm	33000 µF	40 V	-40 °C	105 ░C	11.19 A	62 mm	2.441 in	21 mOhm
KEMET ALC80A332CF100	7000 Hrs	Through Hole	General Purpose	Polar	8.35 A	Radial Can - Snap-In	1.181 inches	30 mm	20 %	70 mOhms	0.394 in	10 mm	3.3 mF	100 V	-40 °C	105 ░C	5.64 A	52 mm	2.047 in	86 mOhm
KEMET ALC80A681EF400	9000 Hrs	Through Hole	General Purpose	Polar	8.22 A	Radial Can - Snap-In	1.575 "	40 mm	20 %	98 mOhms	0.394 in	10 mm	680 µF	400 V	-40 °C	105 ░C	3.36 A	52 mm	2.047 in	187.3 mOhm
KEMET ALC80A471EF500	9000 Hrs	Through Hole	General Purpose	Polar		Radial Can - Snap-In	1.575 "	40 mm	20 %	259 mOhms	0.394 in	10 mm	470 µF	500 V	-40 °C	105 ░C	3.04 A	52 mm	2.047 in	371.9 mOhm
KEMET ALC80A751CF250	7000 Hrs	Through Hole	General Purpose	Polar	6.52 A	Radial Can - Snap-In	1.181 inches	30 mm	20 %	137 mOhms	0.394 in	10 mm	750 µF	250 V	-40 °C	105 ░C	2.78 A	52 mm	2.047 in	233 mOhm
KEMET ALC80A272EH200	9000 Hrs	Through Hole	General Purpose	Polar	9.82 A	Radial Can - Snap-In	1.575 "	40 mm	20 %	54 mOhms	0.394 in	10 mm	2700 µF	200 V	-40 °C	105 ░C	5.53 A	62 mm	2.441 in	86.45 mOhm
KEMET ALC80A473EL040	9000 Hrs	Through Hole	General Purpose	Polar	14.81 A	Radial Can - Snap-In	1.575 "	40 mm	20 %	14 mOhms	0.394 in	10 mm	47 mF	40 V	-40 °C	105 ░C	13.06 A	82 mm	3.228 in	16.56 mOhm
KEMET ALC80A682EF100	9000 Hrs	Through Hole	General Purpose	Polar		Radial Can - Snap-In	1.575 "	40 mm	20 %	44 mOhms	0.394 in	10 mm	6800 µF	100 V	-40 °C	105 ░C		52 mm	2.047 in	51.7 mOhm
KEMET ALC80A471DG450	8000 Hrs	Through Hole	General Purpose	Polar	7.62 A	Radial Can - Snap-In	1.378 in	35 mm	20 %	160 mOhms	0.394 in	10 mm	470 µF	450 V	-40 °C	105 ░C	2.82 A	57 mm	2.244 "	278 mOhm
KEMET ALC80A242CD100	7000 Hrs	Through Hole	General Purpose	Polar	7.01 A	Radial Can - Snap-In	1.181 inches	30 mm	20 %	95 mOhms	0.394 in	10 mm	2.4 mF	100 V	-40 °C	105 ░C	4.63 A			117 mOhm	42 mm	1.654 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.01
		10	$ 10.18
		100	$ 7.93
		1000	$ 6.88

Description

General part information

ALC80A Series

470 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 278mOhm @ 100Hz 8000 Hrs @ 105°C
