LWK316B7225KD-T
ObsoleteTAIYO YUDEN

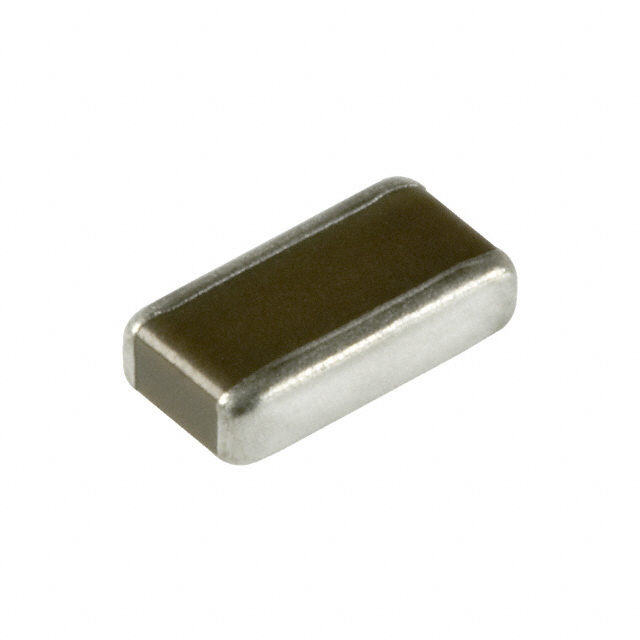

CAP CER 2.2UF 10V X7R 0612
Deep-Dive with AI
Search across all available documentation for this part.
LWK316B7225KD-T
ObsoleteTAIYO YUDEN
CAP CER 2.2UF 10V X7R 0612
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LWK316B7225KD-T |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 2.2 µF |
| Features | Low ESL (Reverse Geometry) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0612 |
| Size / Dimension [x] | 0.063 in, 1.6 mm |
| Size / Dimension [y] | 0.126 in, 3.2 mm |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 0.033 in |
| Thickness (Max) [Max] | 0.85 mm |
| Tolerance | 10 % |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LWK316B Series
2.2 µF ±10% 10V Ceramic Capacitor X7R 0612 (1632 Metric)
