1000650088
ObsoleteMolex - Temp Flex

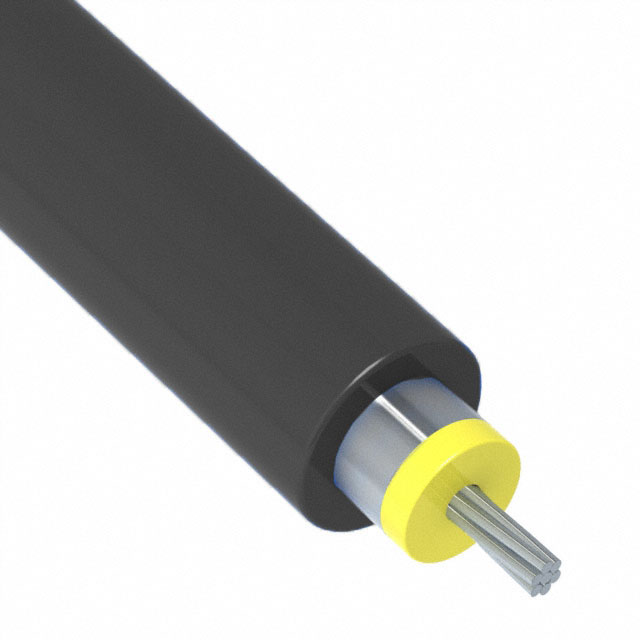

CABLE MICROCOAX 40AWG 10'/SPOOL
Deep-Dive with AI
Search across all available documentation for this part.
1000650088
ObsoleteMolex - Temp Flex
CABLE MICROCOAX 40AWG 10'/SPOOL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1000650088 |
|---|---|
| Cable Type | Micro Coaxial |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 0.008 in |
| Dielectric Diameter [diameter] | 0.203 mm |
| Dielectric Material | Perfluoroalkoxy (PFA) |
| Jacket (Insulation) Diameter [diameter] | 0.014 in |
| Jacket (Insulation) Diameter [diameter] | 0.36 mm |
| Jacket (Insulation) Material | Perfluoroalkoxy (PFA) |
| Jacket Color | Black |
| Length | 15.24 m |
| Length | 50 ft |
| Length [x] | 1 ft, 10 ft, 100 ft |
| Length [x] | 300 mm, 3.05 m, 30.48 m |
| Shield Material | Copper, Tinned |
| Shield Type | Spiral |
| Wire Gauge | 40 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 23.54 | |
| 1 | $ 12.47 | |||
| 3 | $ 11.50 | |||
| 3 | $ 21.74 | |||
| 5 | $ 11.07 | |||
| 5 | $ 21.02 | |||
| 7 | $ 10.83 | |||
| 7 | $ 20.54 | |||
| 10 | $ 19.94 | |||
| 10 | $ 10.59 | |||
| 25 | $ 9.93 | |||
| 25 | $ 18.74 | |||
| 50 | $ 17.78 | |||
| 50 | $ 9.44 | |||
| 100 | $ 16.94 | |||
| 100 | $ 8.96 | |||
Description
General part information
100065 Series
Micro Coaxial Cable 40 AWG 10.0' (3.05m)
