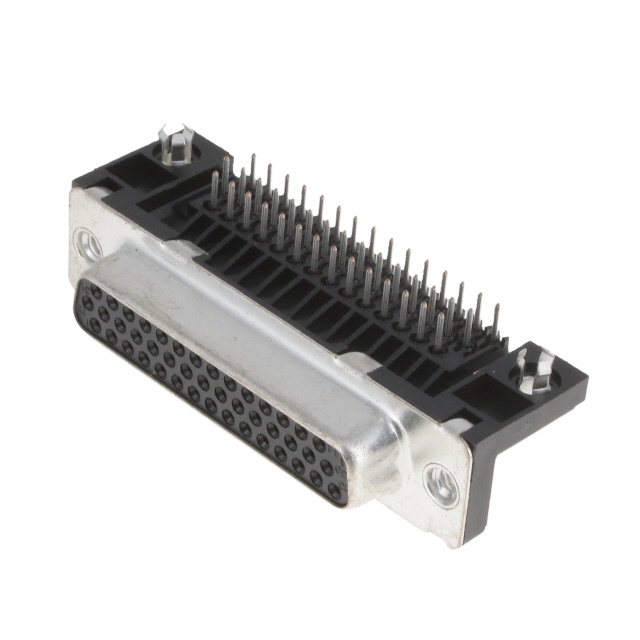

ICD44S13E4GX00LF

Active

Amphenol ICC (FCI)

CONN D-SUB HD RCPT 44P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

Documentsd sub productpresentation Other Related Document Datasheet

ICD44S13E4GX00LF

Active

Amphenol ICC (FCI)

CONN D-SUB HD RCPT 44P R/A SLDR

Deep-Dive with AI

Documentsd sub productpresentation Other Related Document Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ICD44S13E4GX00LF

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder
Voltage Rating	300 VDC

ICD44S13 Series

Part	Termination	Number of Rows	Color	Shell Material, Finish	Voltage Rating	Contact Type	Connector Type	Flange Feature	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Backset Spacing	Backset Spacing	Connector Style	Dielectric Material	Contact Finish	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Material	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) ICD44S13E4GX00LF	Solder	3	Black	Nickel Plated Steel	300 VDC	Signal	Receptacle Female Sockets	Housing/Shell (4-40)	3	B DB	44	3 A	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Polyester	Gold	Board Lock Mounting Brackets	Through Hole Right Angle	-55 °C	125 °C	Flash	Copper Alloy
Amphenol ICC (FCI) ICD44S13E6GV00LF	Solder	3	Black	Nickel Plated Steel	300 VDC	Signal	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	3	B DB	44	3 A	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Polyester	Gold	Board Lock Mounting Brackets	Through Hole Right Angle	-55 °C	125 °C		Copper Alloy	0.76 Ám	30 Áin
Amphenol ICC (FCI) ICD44S13E6PX00LF	Solder	3	Black	Nickel Plated Steel	300 VDC	Signal	Receptacle Female Sockets	Housing/Shell (4-40)	3	B DB	44	3 A	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Polyester	Gold		Through Hole Right Angle	-55 °C	125 °C		Phosphor Bronze	0.76 Ám	30 Áin
Amphenol ICC (FCI) ICD44S13E6GX00LF	Solder	3	Black	Nickel Plated Steel	300 VDC	Signal	Receptacle Female Sockets	Housing/Shell (4-40)	3	B DB	44	3 A	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Polyester	Gold	Board Lock Mounting Brackets	Through Hole Right Angle	-55 °C	125 °C		Copper Alloy	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.57
		10	$ 3.32
		25	$ 3.15
		40	$ 2.99
		80	$ 2.77
		230	$ 2.48
		440	$ 2.32
		945	$ 2.14
		2400	$ 1.96
