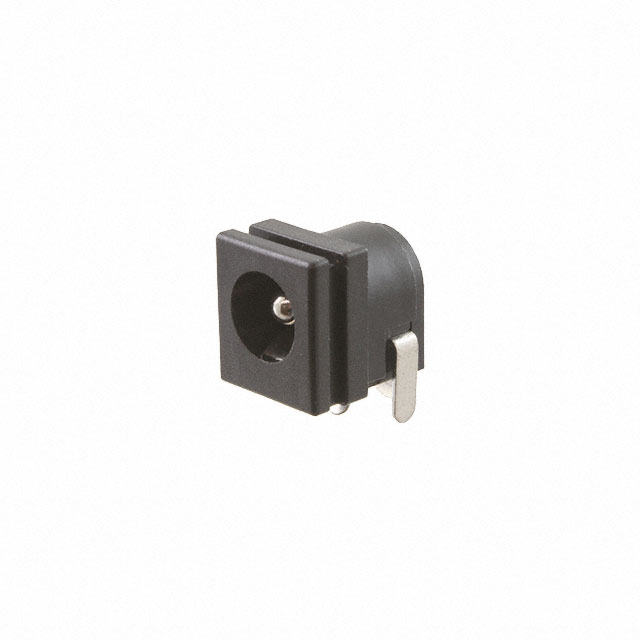

ADC-033-10

Active

Adam Tech

DC POWER JACK

Search across all available documentation for this part.

Active

Adam Tech

DC POWER JACK

Technical Specifications

Parameters and characteristics for this part

Specification	ADC-033-10

Actual Diameter [custom]	7.3 mm
Actual Diameter [custom]	0.287 "
Actual Diameter [custom]	3 mm
Actual Diameter [custom]	0.118 "
Body Color	Black
Connector Type	Jack
Contact Material	Brass
Contact Material - Plating	Tin
Current Rating (Amps)	2.5 A
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [custom]	3 mm
Industry Recognized Mating Diameter [custom]	0.118 in
Industry Recognized Mating Diameter [custom]	0.256 in
Industry Recognized Mating Diameter [custom]	6.5 mm
Insulation Color	Black
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Kinked Pin
Voltage - Rated	18 VDC

Part	Voltage - Rated	Housing Material	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Insulation Color	Termination	Mounting Type	Gender	Actual Diameter [custom]	Actual Diameter [custom]	Material Flammability Rating	Internal Switch(s)	Contact Material - Plating	Number of Positions/Contacts	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Type	Shielding	Body Color	Actual Diameter [custom]	Actual Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]
Adam Tech ADC-033-1	18 VDC	Polybutylene Terephthalate (PBT)	0.079 in 0.217 "	2 mm 5.5 mm	Black	Kinked Pin	Through Hole Right Angle	Male	0.287 in 7.3 mm	0.079 in 2 mm	UL94 V-0	Normally Closed Single Switch	Tin	2 Conductors 3 Conductors	Brass	-25 °C	85 °C	2.5 A	Jack	Unshielded	Black
Adam Tech ADC-033-10	18 VDC	Polybutylene Terephthalate (PBT)			Black	Kinked Pin	Through Hole Right Angle	Male	7.3 mm	3 mm	UL94 V-0	Normally Closed Single Switch	Tin	2 Conductors 3 Conductors	Brass	-25 °C	85 °C	2.5 A	Jack	Unshielded	Black	0.287 "	0.118 "	3 mm	0.118 in	0.256 in	6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 3.00mm ID (0.118"), 6.50mm OD (0.256") Through Hole, Right Angle
