B16B-PASK

Active

JST Sales America Inc.

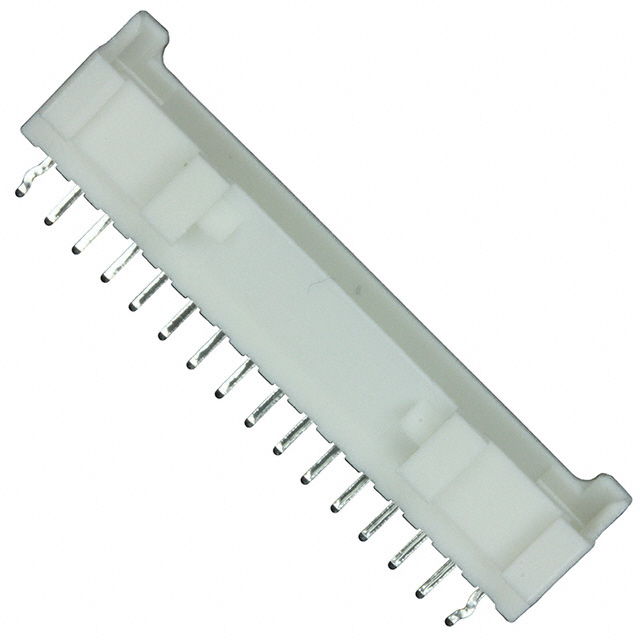

CONN HEADER VERT 16POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 16POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B16B-PASK

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.303 in
Insulation Height	7.7 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mated Stacking Heights	14.7 mm, 9.9 mm, 14.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length [x]	8.1 mm
Overall Contact Length [x]	0.319 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Contact Type	Number of Positions	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height	Insulation Height	Number of Positions Loaded	Material Flammability Rating	Contact Material	Mounting Type	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Color	Shrouding	Fastening Type	Current Rating (Amps)	Insulation Material	Termination	Contact Finish - Post	Style	Mated Stacking Heights	Number of Rows
JST Sales America Inc. B16B-PASK	250 VDC	Male Pin	16	Square	0.079 in	2 mm	0.118 in	3 mm	8.1 mm	0.319 in	0.303 in	7.7 mm	All	UL94 V-0	Copper Alloy	Through Hole	3.2 mm	0.126 "	-25 °C	85 °C	Header	Natural	Shrouded - 4 Wall	Locking Ramp	3 A	Polybutylene Terephthalate (PBT) Glass Filled	Kinked Pin Solder	Tin	Board to Cable/Wire	9.9 mm 14.7 mm 14.9 mm	1
