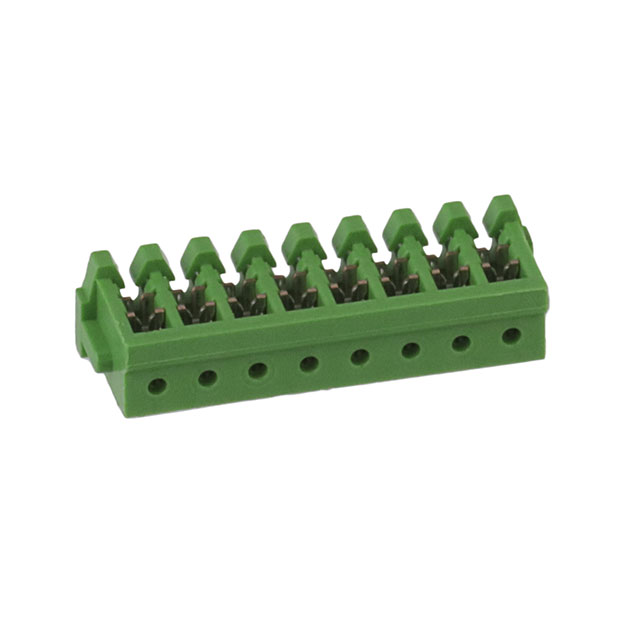

08ZR-8M-P
ObsoleteJST Sales America Inc.
CONN RCPT 8POS IDC 28AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
08ZR-8M-P
ObsoleteJST Sales America Inc.
CONN RCPT 8POS IDC 28AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 08ZR-8M-P |
|---|---|
| Cable Termination | IDC |
| Color | Green |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Pitch [x] | 1.5 mm |
| Pitch [x] | 0.059 in |
| Wire Gauge | 28 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.78 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.49 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.35 | |||
Description
General part information
08ZR Series
8 Position Rectangular Receptacle Connector IDC Tin 28 AWG
