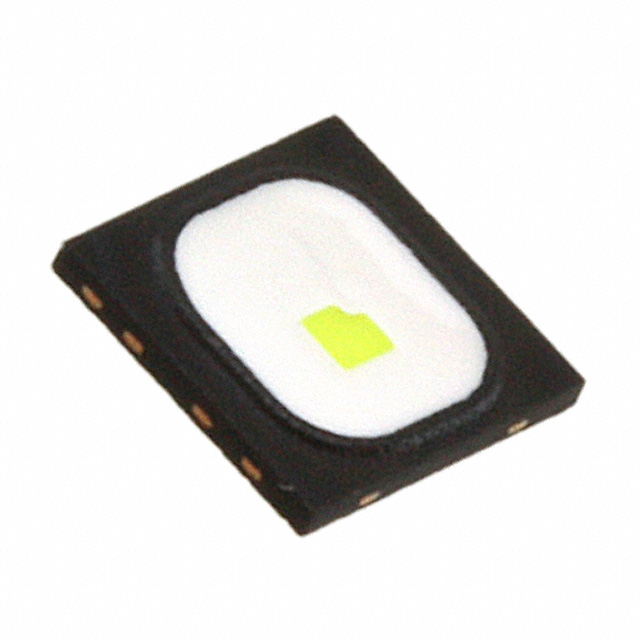

LCG H9RM-LXLZ-1-0-350-R18-Z
Obsoleteams-OSRAM USA INC.
LED OSRAM OSTAR GREEN 550NM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCG H9RM-LXLZ-1-0-350-R18-Z
Obsoleteams-OSRAM USA INC.
LED OSRAM OSTAR GREEN 550NM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCG H9RM-LXLZ-1-0-350-R18-Z |
|---|---|
| Color | Green |
| Current - Max [Max] | 500 mA |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] [z] | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in |
| Lumens/Watt @ Current - Test | 126 lm/W |
| Luminous Flux @ Current/Temperature | 146 lm |
| Luminous Flux @ Current/Temperature [Max] | 180 lm |
| Luminous Flux @ Current/Temperature [Min] | 112 lm |
| Mounting Type | Surface Mount |
| Package / Case | 3838 Metric |
| Package / Case | 1515 |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [x] | 3.75 mm |
| Size / Dimension [y] | 3.75 mm |
| Size / Dimension [y] | 0.148 in |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [custom] | 20 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength [Max] | 600 nm |
| Wavelength [Min] | 500 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCG H9RM Series
LED Lighting Color OSRAM OSTAR Green 550nm (500nm ~ 600nm) 1515 (3838 Metric)
