VJ1808Y472KXGAT

Active

Vishay General Semiconductor - Diodes Division

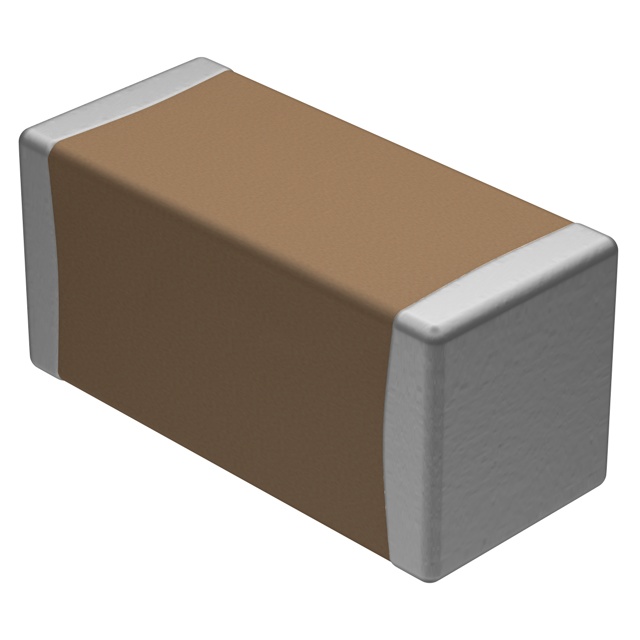

CAP CER 4700PF 1KV X7R 1808

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsVJ Series Packaging Info Datasheet +1

VJ1808Y472KXGAT

Active

Vishay General Semiconductor - Diodes Division

CAP CER 4700PF 1KV X7R 1808

Deep-Dive with AI

DocumentsVJ Series Packaging Info Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VJ1808Y472KXGAT

Applications	General Purpose
Capacitance	4700 pF
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	1808
Package / Case	4520 Metric
Size / Dimension [x]	0.18 "
Size / Dimension [x]	4.57 mm
Size / Dimension [y]	0.08 "
Size / Dimension [y]	2.03 mm
Temperature Coefficient	X7R
Thickness (Max) [Max]	2.18 mm
Thickness (Max) [Max]	0.086 in
Tolerance	10 %
Voltage - Rated	1 kV
Voltage - Rated	1000 V

VJ1808 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Package / Case	Mounting Type	Tolerance	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Applications	Features
Vishay General Semiconductor - Diodes Division VJ1808Y472KXGAT	-55 °C	150 °C	4700 pF	2.18 mm	0.086 in	0.08 "	2.03 mm	0.18 "	4.57 mm	1808	4520 Metric	MLCC Surface Mount	10 %	X7R	1 kV	1000 V	General Purpose
Vishay General Semiconductor - Diodes Division VJ1808A681KXGAT	-55 °C	150 °C	680 pF	2.18 mm	0.086 in	0.08 "	2.03 mm	0.18 "	4.57 mm	1808	4520 Metric	MLCC Surface Mount	10 %	C0G NP0	1 kV	1000 V	General Purpose
Vishay General Semiconductor - Diodes Division VJ1808A360JBEAT4X	-55 °C	125 °C	36 pF	2.18 mm	0.086 in	0.08 "	2.03 mm	0.186 in	4.72 mm	1808	4520 Metric	MLCC Surface Mount	5 %	C0G NP0		500 V	Boardflex Sensitive SMPS Filtering	Open Mode Soft Termination
Vishay General Semiconductor - Diodes Division VJ1808A821JBGAT4X	-55 °C	125 °C	820 pF	2.18 mm	0.086 in	0.08 "	2.03 mm	0.186 in	4.72 mm	1808	4520 Metric	MLCC Surface Mount	5 %	C0G NP0	1 kV	1000 V	Boardflex Sensitive SMPS Filtering	High Voltage Open Mode Soft Termination
Vishay General Semiconductor - Diodes Division VJ1808A822JBAAT4X	-55 °C	125 °C		2.18 mm	0.086 in	0.08 "	2.03 mm	0.186 in	4.72 mm	1808	4520 Metric	MLCC Surface Mount	5 %	C0G NP0		50 VDC	Boardflex Sensitive SMPS Filtering	Open Mode Soft Termination
Vishay General Semiconductor - Diodes Division VJ1808Y152KBRAT4X	-55 °C	125 °C	1500 pF	2.18 mm	0.086 in	0.08 "	2.03 mm	0.186 in	4.72 mm	1808	4520 Metric	MLCC Surface Mount	10 %	X7R	1.5 kV	1500 V	Boardflex Sensitive SMPS Filtering	High Voltage Open Mode Soft Termination
Vishay General Semiconductor - Diodes Division VJ1808A750KBAAT4X	-55 °C	125 °C	75 pF	2.18 mm	0.086 in	0.08 "	2.03 mm	0.186 in	4.72 mm	1808	4520 Metric	MLCC Surface Mount	10 %	C0G NP0		50 VDC	Boardflex Sensitive SMPS Filtering	Open Mode Soft Termination
Vishay General Semiconductor - Diodes Division VJ1808Y392MXGAT	-55 °C	150 °C	3900 pF	2.18 mm	0.086 in	0.08 "	2.03 mm	0.18 "	4.57 mm	1808	4520 Metric	MLCC Surface Mount	20 %	X7R	1 kV	1000 V	General Purpose
Vishay General Semiconductor - Diodes Division VJ1808A681JXGAT	-55 °C	150 °C	680 pF	2.18 mm	0.086 in	0.08 "	2.03 mm	0.18 "	4.57 mm	1808	4520 Metric	MLCC Surface Mount	5 %	C0G NP0	1 kV	1000 V	General Purpose
Vishay General Semiconductor - Diodes Division VJ1808A470KBLAT4X	-55 °C	125 °C	47 pF	2.18 mm	0.086 in	0.08 "	2.03 mm	0.186 in	4.72 mm	1808	4520 Metric	MLCC Surface Mount	10 %	C0G NP0		630 V	Boardflex Sensitive SMPS Filtering	Open Mode Soft Termination
