11047-26-1-0500-003-1-TS

Active

CnC Tech, LLC

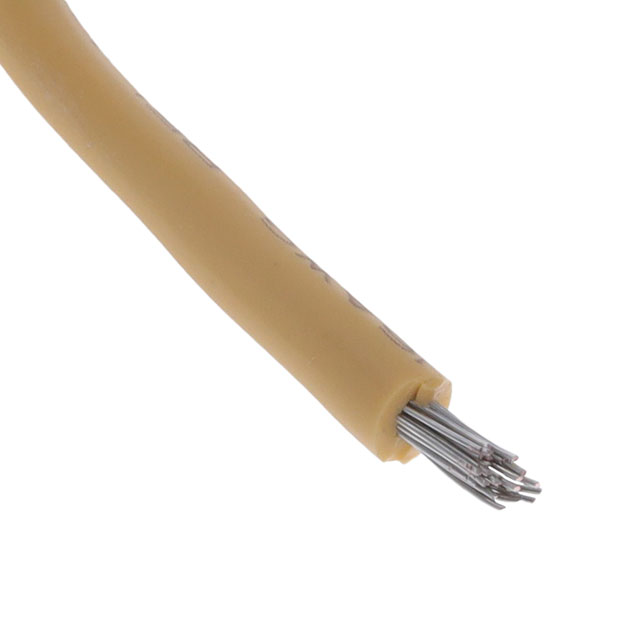

HOOK-UP STRND 26AWG YEL FEET

Search across all available documentation for this part.

Active

CnC Tech, LLC

HOOK-UP STRND 26AWG YEL FEET

Technical Specifications

Parameters and characteristics for this part

Specification	11047-26-1-0500-003-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [x]	7
Conductor Strand [y]	0.0063 in
Jacket (Insulation) Diameter [diameter]	1.35 mm
Jacket (Insulation) Diameter [diameter]	0.053 in
Jacket (Insulation) Material	Polyphenylene Ether (PPE)
Jacket (Insulation) Thickness	0.23 mm
Jacket (Insulation) Thickness	0.009 in
Jacket Color	Yellow
Length	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 11047
Spool Size	500 '
Spool Size	152.4 m
Voltage	600 V
Wire Gauge	26 AWG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Jacket Color	Length	Wire Gauge	Spool Size	Spool Size	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Conductor Strand [x]	Conductor Strand [y]	Voltage	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]
CnC Tech, LLC 11047-26-1-0500-003-1-TS	105 ░C	-10 °C	Copper Tinned	Yellow	Enter Number of Feet in Order Quantity	26 AWG	500 '	152.4 m	0.23 mm	0.009 in	UL Style 11047	7	0.0063 in	600 V	Hook-Up	Polyphenylene Ether (PPE)	1.35 mm	0.053 in
CnC Tech, LLC 11047-26-1-0500-012-1-TS	105 ░C	-10 °C	Copper Tinned	Gray	Enter Number of Feet in Order Quantity	26 AWG	500 '	152.4 m	0.23 mm	0.009 in	UL Style 11047			600 V	Hook-Up	Polyphenylene Ether (PPE)	1.83 mm	0.072 in	7	30 AWG
CnC Tech, LLC 11047-26-1-0500-011-1-TS	105 ░C	-10 °C	Copper Tinned	Green Yellow	Enter Number of Feet in Order Quantity	26 AWG	500 '	152.4 m	0.23 mm	0.009 in	UL Style 11047	7	0.0063 in	600 V	Hook-Up	Polyphenylene Ether (PPE)	1.35 mm	0.053 in
CnC Tech, LLC 11047-26-1-0500-008-1-TS	105 ░C	-10 °C	Copper Tinned	Orange	Enter Number of Feet in Order Quantity	26 AWG	500 '	152.4 m	0.23 mm	0.009 in	UL Style 11047	7	0.0063 in	600 V	Hook-Up	Polyphenylene Ether (PPE)	1.35 mm	0.053 in
CnC Tech, LLC 11047-26-1-0500-001-1-TS	105 ░C	-10 °C	Copper Tinned	Black	Enter Number of Feet in Order Quantity	26 AWG	500 '	152.4 m	0.23 mm	0.009 in	UL Style 11047	7	0.0063 in	600 V	Hook-Up	Polyphenylene Ether (PPE)	1.35 mm	0.053 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 AWG Hook-Up Wire 7/0.0063" Yellow 600V Enter Number of Feet in Order Quantity
