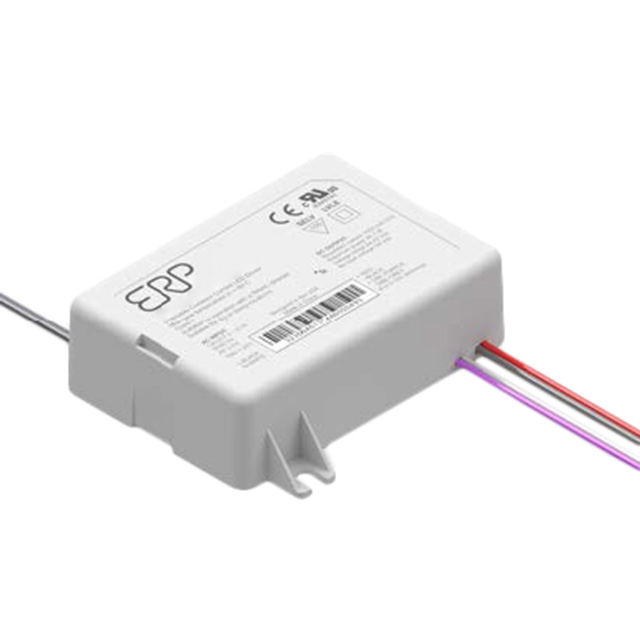

ESP050W-1050-42

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 1.05A

Search across all available documentation for this part.

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 1.05A

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Topology	Efficiency	Power (Watts)	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Weight	Weight	Current - Output (Max) [Max]	Ratings	Termination Style	Voltage - Output [Min]	Voltage - Output [Max]	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Type
ERP Power, LLC ESP050W-1200-42	CB CE cRUcs cUL FC UL	AC DC Converter	87 %	50 W	1	1.07 "	27.2 mm	59.9 mm	2.36 "	3.43 in	87 mm	222 g	0.489 lb	1.2 A	IP64 NEMA 410	Wire Leads	28 V	42 V	Analog ELV TRIAC	-30 ░C	90 °C	OCP OTP SCP	277 VAC	Chassis Mount	120 VAC	Constant Current
ERP Power, LLC ESP050W-1050-42	CB CE cRUcs cUL FC UL	AC DC Converter	87 %	44 W	1	1.07 "	27.2 mm	59.9 mm	2.36 "	3.43 in	87 mm	222 g	0.489 lb	1.05 A	IP64 NEMA 410	Wire Leads	28 V	42 V	Analog ELV TRIAC	-30 ░C	90 °C	OCP OTP SCP	277 VAC	Chassis Mount	120 VAC	Constant Current
ERP Power, LLC ESP050W-1400-32	CB CE cRUcs cUL FC UL	AC DC Converter	87 %	45 W	1	1.07 "	27.2 mm	59.9 mm	2.36 "	3.43 in	87 mm	222 g	0.489 lb	1.4 A	IP64 NEMA 410	Wire Leads	21 V	32 VDC	Analog ELV TRIAC	-30 ░C	90 °C	OCP OTP SCP	277 VAC	Chassis Mount	120 VAC	Constant Current
ERP Power, LLC ESP050W-1400-34	CB CE cRUcs cUL FC UL	AC DC Converter	87 %	48 W	1	1.07 "	27.2 mm	59.9 mm	2.36 "	3.43 in	87 mm	222 g	0.489 lb	1.4 A	IP64 NEMA 410	Wire Leads	23 V	34 V	Analog ELV TRIAC	-30 ░C	90 °C	OCP OTP SCP	277 VAC	Chassis Mount	120 VAC	Constant Current

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.05A 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources
